SDO HMI 2011-10-16 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 320.97 | 1076.04 | 162.13 | 543.84 | 10.41 | 52.09 | 9.81 | 298.82 | 0.1937 | -201.0 | -113.3 | |
|
previous
or next observation for the same group /

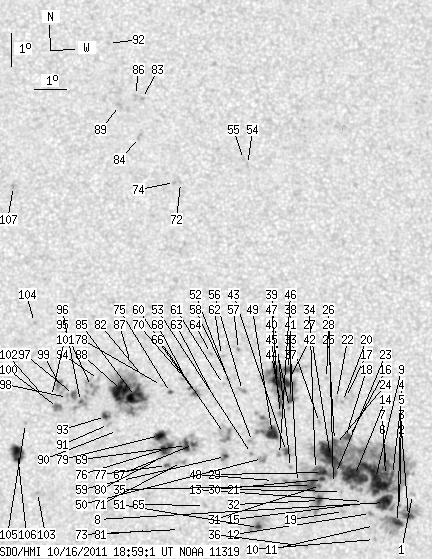

back to the solar disc SDO HMI 2011-10-16 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.20 | 8.84 | 56.28 | 14.01 | 283.25 | 0.2468 | -703.0 | -567.9 | |
| 4.71 | 55.31 | 2.40 | 28.20 | 8.18 | 56.13 | 13.86 | 280.71 | 0.2424 | -869.9 | -504.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 8.49 | 55.87 | 13.59 | 282.16 | 0.2388 | -799.0 | -690.5 | |
| 5.58 | -2.00 | 2.85 | -2.00 | 8.01 | 55.79 | 13.51 | 280.22 | 0.2361 | -1063.9 | 999999 | |
| 2.36 | 484.02 | 1.20 | 245.86 | 9.45 | 55.68 | 13.41 | 286.27 | 0.2393 | -869.1 | -515.2 | |
| 6.54 | -5.00 | 3.34 | -5.00 | 9.69 | 55.51 | 13.23 | 287.45 | 0.2375 | -895.2 | 999999 | |
| 4.01 | -5.00 | 2.04 | -5.00 | 9.42 | 55.47 | 13.19 | 286.39 | 0.2357 | -952.2 | 999999 | |
| 16.84 | -5.00 | 8.57 | -5.00 | 8.62 | 55.40 | 13.13 | 283.07 | 0.2316 | -1192.1 | 999999 | |
| 41.35 | -5.00 | 21.05 | -5.00 | 9.34 | 55.15 | 12.87 | 286.39 | 0.2302 | -1221.0 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 7.52 | 55.06 | 12.78 | 278.52 | 0.2228 | -731.0 | -598.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 7.94 | 55.07 | 12.79 | 280.37 | 0.2240 | -729.0 | -624.8 | |
| 0.00 | 2.79 | 0.00 | 1.42 | 8.30 | 54.96 | 12.68 | 282.06 | 0.2232 | -1084.0 | -860.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 8.66 | 54.76 | 12.48 | 283.85 | 0.2210 | -843.0 | -736.0 | |
| 29.84 | -5.00 | 15.15 | -5.00 | 9.45 | 54.50 | 12.23 | 287.58 | 0.2201 | -1345.2 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 8.58 | 54.47 | 12.20 | 283.74 | 0.2160 | -1012.0 | -816.5 | |
| 2.53 | -5.00 | 1.29 | -5.00 | 10.62 | 54.39 | 12.12 | 292.76 | 0.2247 | 521.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.79 | 54.32 | 12.04 | 297.62 | 0.2315 | -801.0 | -611.4 | |
| 2.27 | -5.00 | 1.15 | -5.00 | 10.59 | 54.27 | 11.99 | 292.84 | 0.2226 | -608.3 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.93 | 8.38 | 54.13 | 11.85 | 283.14 | 0.2096 | -834.0 | -699.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.67 | 54.22 | 11.94 | 297.34 | 0.2292 | -901.0 | -656.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 8.98 | 54.09 | 11.81 | 285.98 | 0.2112 | -859.0 | -750.2 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 11.76 | 54.04 | 11.76 | 298.06 | 0.2271 | -749.0 | -551.0 | |
| 2.62 | -5.00 | 1.33 | -5.00 | 9.52 | 53.92 | 11.64 | 288.67 | 0.2110 | -1277.3 | 999999 | |
| 1.83 | -5.00 | 0.93 | -5.00 | 10.39 | 53.95 | 11.67 | 292.48 | 0.2164 | -354.0 | 999999 | |
| 1.83 | -5.00 | 0.93 | -5.00 | 10.51 | 53.92 | 11.65 | 293.05 | 0.2167 | 447.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 9.22 | 53.85 | 11.57 | 287.40 | 0.2084 | -824.0 | -632.0 | |
| 31.06 | -5.00 | 15.74 | -5.00 | 10.03 | 53.78 | 11.50 | 291.18 | 0.2116 | -1266.3 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 12.37 | 53.75 | 11.47 | 301.00 | 0.2277 | 719.0 | 450.5 | |
| 4.19 | -5.00 | 2.12 | -5.00 | 9.56 | 53.52 | 11.24 | 289.42 | 0.2048 | -1406.7 | 999999 | |
| 2.18 | -5.00 | 1.10 | -5.00 | 9.35 | 53.51 | 11.23 | 288.45 | 0.2036 | -1342.7 | 999999 | |
| 0.96 | -5.00 | 0.49 | -5.00 | 9.17 | 53.44 | 11.17 | 287.69 | 0.2016 | -1109.3 | 999999 | |
| 4.62 | -5.00 | 2.34 | -5.00 | 8.72 | 53.40 | 11.12 | 285.58 | 0.1988 | -961.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.05 | 53.48 | 11.20 | 296.20 | 0.2135 | -930.0 | -721.1 | |
| 1.74 | -5.00 | 0.88 | -5.00 | 9.65 | 53.31 | 11.03 | 290.19 | 0.2018 | -1018.0 | 999999 | |
| 8.29 | -5.00 | 4.19 | -5.00 | 9.17 | 53.17 | 10.89 | 288.11 | 0.1971 | -1209.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 7.35 | 52.96 | 10.68 | 279.02 | 0.1870 | -952.0 | -787.8 | |
| 2.62 | -5.00 | 1.32 | -5.00 | 9.27 | 52.74 | 10.46 | 289.24 | 0.1907 | -1011.7 | 999999 | |
| 4.89 | 87.50 | 2.47 | 44.30 | 11.79 | 52.61 | 10.33 | 301.20 | 0.2062 | 933.9 | 416.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 9.72 | 52.54 | 10.26 | 291.85 | 0.1900 | -1076.0 | -907.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.52 | 52.57 | 10.29 | 300.15 | 0.2033 | 743.0 | 605.1 | |
| 6.02 | -38.00 | 3.05 | -38.00 | 12.66 | 52.58 | 10.30 | 304.84 | 0.2136 | 885.4 | 999999 | |
| 4.62 | -38.00 | 2.34 | -38.00 | 12.27 | 52.53 | 10.26 | 303.39 | 0.2093 | 788.9 | 999999 | |
| 3.32 | 5.32 | 1.67 | 2.69 | 10.20 | 52.43 | 10.15 | 294.41 | 0.1914 | -1018.6 | -890.2 | |
| 2.27 | -38.00 | 1.15 | -38.00 | 11.68 | 52.29 | 10.02 | 301.47 | 0.2006 | -840.0 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 11.35 | 52.28 | 10.00 | 300.04 | 0.1977 | -1055.0 | -863.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 10.12 | 52.21 | 9.93 | 294.43 | 0.1874 | -1077.0 | -824.9 | |
| 7.42 | -38.00 | 3.75 | -38.00 | 12.28 | 52.22 | 9.95 | 304.19 | 0.2050 | 1321.5 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.36 | 9.34 | 52.00 | 9.73 | 290.88 | 0.1792 | -418.0 | -351.1 | |
| 11.60 | 30.01 | 5.85 | 15.13 | 10.75 | 52.01 | 9.74 | 297.93 | 0.1889 | -1187.4 | -743.6 | |
| 0.00 | 6.63 | 0.00 | 3.34 | 10.01 | 51.68 | 9.41 | 295.00 | 0.1784 | -914.0 | -733.3 | |
| 2.53 | 20.76 | 1.27 | 10.43 | 7.95 | 51.51 | 9.23 | 283.83 | 0.1644 | 919.5 | 271.5 | |
| 0.00 | 3.84 | 0.00 | 1.93 | 10.52 | 51.39 | 9.11 | 298.32 | 0.1777 | 518.0 | 219.9 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 10.16 | 51.35 | 9.07 | 296.58 | 0.1744 | -974.0 | -796.1 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 18.90 | 51.59 | 9.32 | 326.14 | 0.2762 | -921.0 | -729.0 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 19.06 | 51.47 | 9.20 | 326.81 | 0.2772 | -1010.0 | -778.9 | |
| 0.00 | 3.40 | 0.00 | 1.72 | 12.06 | 51.13 | 8.85 | 306.28 | 0.1876 | -865.0 | -605.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 13.29 | 51.05 | 8.77 | 311.62 | 0.1995 | -928.0 | -779.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 12.42 | 50.71 | 8.43 | 309.18 | 0.1856 | 889.0 | 622.1 | |
| 1.83 | 7.33 | 0.92 | 3.68 | 10.08 | 50.55 | 8.27 | 298.25 | 0.1616 | -871.1 | -338.4 | |
| 0.00 | 17.01 | 0.00 | 8.55 | 10.77 | 50.54 | 8.26 | 301.97 | 0.1672 | -532.0 | -537.3 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 12.24 | 50.55 | 8.27 | 308.94 | 0.1816 | 687.0 | 520.3 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 13.12 | 50.52 | 8.24 | 312.69 | 0.1908 | 924.0 | 707.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.95 | 50.20 | 7.93 | 308.79 | 0.1739 | 838.0 | 601.6 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 13.18 | 50.18 | 7.90 | 314.12 | 0.1873 | -887.0 | -644.3 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 8.63 | 49.88 | 7.60 | 291.15 | 0.1408 | 964.0 | 715.7 | |
| 2.44 | 8.46 | 1.23 | 4.25 | 12.02 | 49.68 | 7.40 | 310.97 | 0.1677 | 1036.7 | 767.6 | |
| 2.70 | 26.35 | 1.35 | 13.20 | 10.46 | 49.58 | 7.30 | 303.38 | 0.1504 | 878.0 | 542.6 | |
| 0.44 | -66.00 | 0.22 | -66.00 | 12.17 | 49.53 | 7.25 | 312.24 | 0.1675 | 912.8 | 999999 | |
| 5.85 | -67.00 | 2.93 | -67.00 | 10.43 | 49.36 | 7.09 | 304.00 | 0.1470 | 1081.0 | 999999 | |
| 0.00 | 3.66 | 0.00 | 1.84 | 12.47 | 49.35 | 7.08 | 314.27 | 0.1688 | 767.0 | 764.3 | |
| 0.00 | 4.80 | 0.00 | 2.40 | 9.92 | 49.20 | 6.92 | 301.58 | 0.1400 | 833.0 | 720.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 18.38 | 49.43 | 7.16 | 331.63 | 0.2499 | 800.0 | 588.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 7.92 | 49.10 | 6.82 | 287.92 | 0.1243 | 706.0 | 567.6 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 18.38 | 49.24 | 6.97 | 332.26 | 0.2485 | 955.0 | 679.4 | |
| 1.57 | 1.57 | 0.79 | 0.79 | 12.02 | 48.91 | 6.63 | 314.09 | 0.1581 | 904.1 | 916.0 | |
| 9.77 | 35.16 | 4.89 | 17.58 | 10.35 | 48.75 | 6.47 | 305.89 | 0.1376 | 1211.8 | 199.2 | |
| 1.66 | 2.36 | 0.83 | 1.18 | 9.84 | 48.74 | 6.46 | 302.77 | 0.1325 | 890.6 | 817.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 12.24 | 48.64 | 6.36 | 316.24 | 0.1573 | 662.0 | 358.7 | |
| 7.15 | -76.00 | 3.58 | -76.00 | 10.74 | 48.55 | 6.27 | 309.06 | 0.1388 | -1004.1 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 10.05 | 48.53 | 6.25 | 304.98 | 0.1315 | 95.0 | 120.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 7.90 | 48.13 | 5.85 | 290.39 | 0.1083 | 805.0 | 668.6 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 12.54 | 48.06 | 5.79 | 320.25 | 0.1546 | 739.0 | 530.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.98 | 48.33 | 6.05 | 339.46 | 0.2818 | 862.0 | 712.2 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 19.78 | 48.19 | 5.91 | 338.22 | 0.2622 | 656.0 | 683.9 | |
| 20.24 | 118.04 | 10.13 | 59.07 | 11.92 | 47.84 | 5.56 | 318.57 | 0.1439 | 1037.9 | 454.6 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 21.07 | 48.11 | 5.83 | 340.27 | 0.2820 | 851.0 | 670.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.94 | 47.70 | 5.43 | 323.62 | 0.1561 | 825.0 | 635.2 | |
| 26.96 | -85.00 | 13.49 | -85.00 | 12.10 | 47.41 | 5.13 | 321.63 | 0.1416 | 1306.7 | 999999 | |
| 0.00 | 3.14 | 0.00 | 1.62 | 20.77 | 47.58 | 5.30 | 341.55 | 0.2743 | 820.0 | 674.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 10.90 | 47.27 | 4.99 | 316.40 | 0.1244 | 703.0 | 498.0 | |
| 0.00 | 1.92 | 0.00 | 0.96 | 11.08 | 46.99 | 4.72 | 318.98 | 0.1235 | 779.0 | 645.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 22.70 | 47.30 | 5.02 | 344.52 | 0.3037 | 779.0 | 605.7 | |
| 2.53 | 5.58 | 1.26 | 2.79 | 11.32 | 46.91 | 4.63 | 320.78 | 0.1257 | 1298.9 | 999.3 | |
| 0.00 | 3.40 | 0.00 | 1.70 | 12.44 | 46.71 | 4.43 | 327.00 | 0.1392 | 868.0 | 587.1 | |
| 0.00 | 13.35 | 0.00 | 6.67 | 12.23 | 46.49 | 4.22 | 327.46 | 0.1342 | 1158.0 | 849.9 | |
| 1.05 | 12.48 | 0.52 | 6.23 | 11.78 | 46.15 | 3.87 | 327.75 | 0.1245 | 1238.7 | 814.5 | |
| 1.92 | 4.36 | 0.96 | 2.18 | 11.99 | 45.94 | 3.66 | 330.05 | 0.1257 | 1212.7 | 990.3 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 11.90 | 45.75 | 3.48 | 330.96 | 0.1228 | 1001.0 | 874.2 | |
| 0.00 | 9.77 | 0.00 | 4.88 | 12.20 | 45.57 | 3.30 | 333.36 | 0.1259 | 784.0 | 808.1 | |
| 0.00 | 6.63 | 0.00 | 3.31 | 11.60 | 45.44 | 3.17 | 331.97 | 0.1157 | 1221.0 | 1013.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.93 | 45.27 | 2.99 | 334.60 | 0.1194 | 882.0 | 721.8 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 11.97 | 45.02 | 2.74 | 336.54 | 0.1182 | 935.0 | 726.2 | |
| 0.00 | 1.40 | 0.00 | 0.69 | 9.06 | 44.81 | 2.54 | 322.69 | 0.0724 | 916.0 | 719.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.16 | 44.77 | 2.49 | 343.89 | 0.1526 | 876.0 | 693.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.13 | 44.46 | 2.19 | 338.13 | 0.1010 | 1000.0 | 848.1 | |
| 14.22 | 17.54 | 7.07 | 8.72 | 10.23 | 44.22 | 1.94 | 336.81 | 0.0849 | 1150.9 | 791.8 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 18.30 | 44.16 | 1.88 | 351.81 | 0.2201 | 1001.0 | 782.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
