SDO HMI 2011-10-16 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.19 | 20.15 | 6.45 | 29.09 | 24.31 | 331.16 | -70.57 | 66.20 | 0.9401 | -39.9 | -140.8 | |
|
previous
or next observation for the same group /

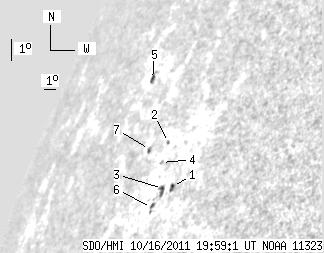

back to the solar disc SDO HMI 2011-10-16 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 2.88 | 1.71 | 3.75 | 23.50 | 333.62 | -68.10 | 66.94 | 0.9265 | -416.3 | -587.3 | |
| 0.00 | 1.48 | 0.00 | 2.09 | 24.76 | 331.76 | -69.96 | 65.69 | 0.9376 | -92.0 | -38.6 | |
| 0.61 | 5.06 | 0.82 | 6.78 | 23.37 | 332.87 | -68.86 | 67.12 | 0.9309 | -467.6 | -349.8 | |
| 0.00 | 0.96 | 0.00 | 1.34 | 24.12 | 331.89 | -69.84 | 66.37 | 0.9367 | -226.0 | -134.6 | |
| 2.27 | 4.10 | 3.92 | 7.09 | 26.44 | 327.50 | -74.23 | 64.10 | 0.9592 | 267.5 | 251.9 | |
| 0.00 | 3.14 | 0.00 | 4.25 | 22.73 | 332.58 | -69.15 | 67.82 | 0.9324 | -491.0 | -398.5 | |
| 0.00 | 2.53 | 0.00 | 3.79 | 24.40 | 330.33 | -71.40 | 66.14 | 0.9452 | 439.0 | 331.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
