SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.54 | 661.30 | 52.68 | 363.86 | 27.20 | 55.72 | 14.55 | 329.17 | 0.4365 | -816.8 | -384.3 | |
|
previous
or next observation for the same group /

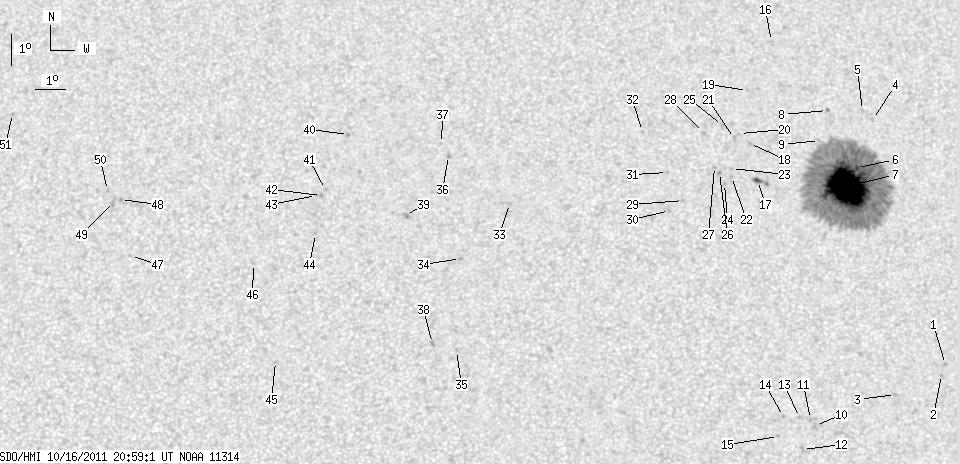

back to the solar disc SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.61 | 21.61 | 59.30 | 18.13 | 313.81 | 0.4026 | -695.0 | -619.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 21.30 | 59.13 | 17.95 | 313.47 | 0.3974 | -890.0 | -723.1 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 20.73 | 57.52 | 16.35 | 314.85 | 0.3729 | -862.0 | -688.2 | |
| 0.00 | 1.92 | 0.00 | 1.08 | 29.45 | 57.94 | 16.77 | 328.20 | 0.4788 | 775.0 | 546.7 | |
| 0.00 | 1.66 | 0.00 | 0.93 | 29.76 | 57.64 | 16.47 | 329.03 | 0.4801 | 768.0 | 598.1 | |
| 1.05 | 587.10 | 0.58 | 323.93 | 27.91 | 57.16 | 15.99 | 327.37 | 0.4534 | -610.8 | -434.5 | |
| 91.44 | -6.00 | 50.43 | -6.00 | 27.31 | 56.69 | 15.52 | 327.30 | 0.4419 | -1533.5 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 29.79 | 56.39 | 15.22 | 330.94 | 0.4709 | -748.0 | -593.6 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 28.82 | 55.96 | 14.79 | 330.44 | 0.4552 | 13.0 | -3.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 19.84 | 54.79 | 13.62 | 317.96 | 0.3322 | -806.0 | -718.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 20.03 | 54.64 | 13.47 | 318.66 | 0.3328 | -914.0 | -731.6 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 19.11 | 54.31 | 13.13 | 317.36 | 0.3183 | -799.0 | -702.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 20.10 | 54.29 | 13.12 | 319.53 | 0.3298 | -877.0 | -675.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 20.14 | 53.77 | 12.60 | 320.71 | 0.3249 | -794.0 | -602.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 19.53 | 53.56 | 12.39 | 319.88 | 0.3151 | -904.0 | -721.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 32.11 | 54.73 | 13.56 | 335.99 | 0.4902 | -745.0 | -620.0 | |
| 3.05 | 6.19 | 1.67 | 3.38 | 27.57 | 53.64 | 12.46 | 332.88 | 0.4213 | -785.2 | -742.5 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 28.77 | 53.50 | 12.33 | 334.52 | 0.4369 | -666.0 | -602.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 30.51 | 53.65 | 12.47 | 336.12 | 0.4616 | -739.0 | -541.2 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 29.11 | 53.19 | 12.02 | 335.43 | 0.4394 | -694.0 | -571.5 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 28.95 | 53.00 | 11.82 | 335.60 | 0.4359 | -832.0 | -661.7 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 27.72 | 52.76 | 11.58 | 334.67 | 0.4172 | -780.0 | -546.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 27.98 | 52.78 | 11.61 | 334.91 | 0.4210 | -729.0 | -620.6 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 27.50 | 52.49 | 11.32 | 334.91 | 0.4123 | -864.0 | -787.6 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 29.38 | 52.63 | 11.45 | 336.71 | 0.4396 | -854.0 | -647.2 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 27.86 | 52.36 | 11.18 | 335.58 | 0.4165 | -905.0 | -797.0 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 28.05 | 52.20 | 11.03 | 336.08 | 0.4183 | -709.0 | -613.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 29.16 | 51.94 | 10.77 | 337.73 | 0.4324 | -837.0 | -743.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 26.98 | 51.04 | 9.87 | 337.18 | 0.3955 | -801.0 | -636.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 26.67 | 50.54 | 9.36 | 337.88 | 0.3878 | -711.0 | -581.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 27.89 | 50.57 | 9.40 | 339.08 | 0.4060 | -788.0 | -638.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 29.23 | 49.83 | 8.66 | 341.78 | 0.4218 | -696.0 | -478.9 | |
| 0.00 | 1.66 | 0.00 | 0.88 | 26.95 | 45.16 | 3.99 | 350.27 | 0.3683 | 833.0 | 669.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 25.21 | 43.48 | 2.31 | 353.75 | 0.3362 | 927.0 | 767.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 22.32 | 43.30 | 2.13 | 353.12 | 0.2881 | 748.0 | 607.4 | |
| 0.00 | 1.92 | 0.00 | 1.03 | 28.51 | 43.14 | 1.97 | 355.53 | 0.3893 | 792.0 | 675.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 28.90 | 42.91 | 1.74 | 356.13 | 0.3953 | 661.0 | 460.5 | |
| 0.00 | 2.53 | 0.00 | 1.31 | 22.54 | 42.53 | 1.36 | 355.67 | 0.2905 | 992.0 | 752.0 | |
| 0.00 | 2.97 | 0.00 | 1.57 | 26.58 | 41.67 | 0.50 | 358.75 | 0.3568 | 881.0 | 755.2 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 29.19 | 39.73 | -1.44 | 3.16 | 0.3997 | 901.0 | 710.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 27.41 | 38.98 | -2.19 | 5.26 | 0.3719 | 902.0 | 742.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 27.21 | 38.85 | -2.32 | 5.63 | 0.3689 | 1005.0 | 797.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 27.21 | 38.68 | -2.49 | 6.03 | 0.3692 | 881.0 | 719.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 26.00 | 38.68 | -2.50 | 6.46 | 0.3495 | 814.0 | 648.8 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 21.97 | 37.46 | -3.71 | 12.13 | 0.2866 | 698.0 | 622.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 25.03 | 36.65 | -4.52 | 12.21 | 0.3392 | 793.0 | 622.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.24 | 32.55 | -8.62 | 22.08 | 0.3623 | 674.0 | 437.3 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 27.02 | 32.08 | -9.09 | 21.17 | 0.3915 | 936.0 | 787.4 | |
| 0.00 | 4.19 | 0.00 | 2.25 | 26.95 | 31.85 | -9.33 | 21.73 | 0.3918 | 940.0 | 760.9 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 27.30 | 31.61 | -9.56 | 21.84 | 0.3984 | 701.0 | 515.1 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 29.74 | 28.05 | -13.12 | 25.77 | 0.4554 | 765.0 | 652.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
