SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.52 | 648.08 | 66.61 | 341.29 | -12.23 | 49.03 | 7.86 | 203.06 | 0.3408 | -62.5 | -89.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

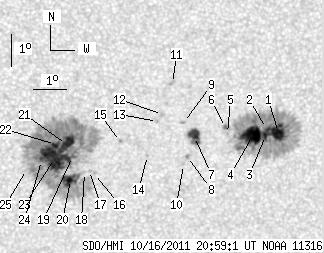

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.31 | 239.06 | 7.61 | 126.94 | -11.79 | 53.25 | 12.08 | 214.36 | 0.3645 | 1174.5 | 410.3 | |
| 0.61 | -1.00 | 0.32 | -1.00 | -11.65 | 52.87 | 11.70 | 213.72 | 0.3592 | 1335.3 | 999999 | |
| 2.09 | -1.00 | 1.11 | -1.00 | -11.87 | 52.85 | 11.68 | 213.33 | 0.3620 | 1050.8 | 999999 | |
| 23.12 | -1.00 | 12.26 | -1.00 | -11.86 | 52.44 | 11.27 | 212.42 | 0.3583 | 1334.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -11.79 | 51.66 | 10.49 | 210.71 | 0.3506 | 988.0 | 852.4 | |
| 1.57 | 3.14 | 0.83 | 1.66 | -11.60 | 51.59 | 10.42 | 210.82 | 0.3473 | 1024.8 | 649.2 | |
| 12.39 | 14.40 | 6.53 | 7.59 | -11.86 | 50.64 | 9.47 | 208.09 | 0.3435 | 1045.3 | 819.0 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -12.49 | 50.45 | 9.28 | 206.76 | 0.3511 | 807.0 | 626.9 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -11.42 | 50.29 | 9.12 | 207.81 | 0.3343 | 926.0 | 771.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.74 | 50.33 | 9.16 | 206.15 | 0.3539 | 585.0 | 466.1 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -10.19 | 49.91 | 8.74 | 208.62 | 0.3136 | 761.0 | 708.6 | |
| 0.00 | 1.57 | 0.00 | 0.82 | -11.16 | 49.63 | 8.46 | 206.45 | 0.3255 | 753.0 | 643.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.37 | 49.49 | 8.31 | 205.75 | 0.3277 | 687.0 | 515.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.43 | 49.21 | 8.04 | 203.66 | 0.3417 | -846.0 | -629.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -11.98 | 48.36 | 7.19 | 201.92 | 0.3294 | 884.0 | 733.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.98 | 47.59 | 6.42 | 198.74 | 0.3404 | -684.0 | -524.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.88 | 47.43 | 6.26 | 198.41 | 0.3381 | -658.0 | -561.8 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.94 | 47.28 | 6.11 | 197.93 | 0.3383 | -516.0 | -361.3 | |
| 1.40 | 375.00 | 0.73 | 196.43 | -12.44 | 46.90 | 5.73 | 197.34 | 0.3284 | -811.7 | -454.8 | |
| 14.92 | -19.00 | 7.85 | -19.00 | -13.16 | 46.85 | 5.68 | 196.56 | 0.3396 | -998.1 | 999999 | |
| 14.05 | -19.00 | 7.34 | -19.00 | -12.06 | 46.71 | 5.53 | 197.14 | 0.3215 | -1366.6 | 999999 | |
| 3.58 | -19.00 | 1.87 | -19.00 | -12.05 | 46.37 | 5.20 | 196.15 | 0.3198 | -1480.2 | 999999 | |
| 37.43 | -19.00 | 19.61 | -19.00 | -12.49 | 46.35 | 5.17 | 195.71 | 0.3267 | -1164.1 | 999999 | |
| 1.05 | -19.00 | 0.55 | -19.00 | -12.55 | 45.95 | 4.78 | 194.50 | 0.3259 | -925.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.83 | 45.49 | 4.32 | 192.97 | 0.3287 | -71.0 | -60.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
