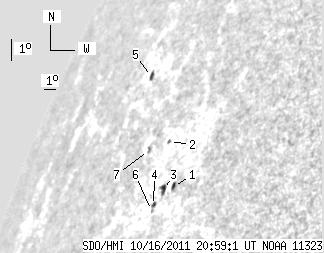

SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.07 | 18.94 | 12.69 | 26.50 | 24.15 | 331.33 | -69.84 | 66.33 | 0.9360 | -177.5 | -39.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.92 | 2.70 | 2.45 | 3.45 | 23.46 | 333.64 | -67.53 | 66.95 | 0.9229 | -506.4 | -535.4 | |
| 0.00 | 1.40 | 0.00 | 1.92 | 24.75 | 331.80 | -69.37 | 65.67 | 0.9343 | -72.0 | -61.4 | |
| 3.40 | 5.50 | 4.45 | 7.20 | 23.30 | 332.94 | -68.23 | 67.16 | 0.9271 | -427.2 | -296.4 | |
| 1.48 | 2.36 | 1.96 | 3.11 | 22.75 | 332.64 | -68.53 | 67.77 | 0.9288 | -444.4 | -417.4 | |
| 2.27 | 3.32 | 3.83 | 5.60 | 26.48 | 327.37 | -73.80 | 64.05 | 0.9573 | 315.7 | 304.2 | |
| 0.00 | 0.96 | 0.00 | 1.27 | 22.59 | 332.63 | -68.54 | 67.94 | 0.9288 | -426.0 | -396.2 | |
| 0.00 | 2.70 | 0.00 | 3.95 | 24.32 | 330.30 | -70.87 | 66.21 | 0.9424 | 517.0 | 346.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
