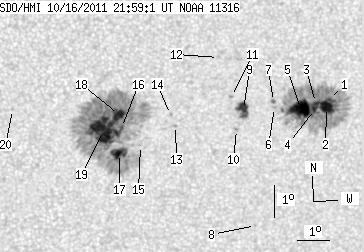

SDO HMI 2011-10-16 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.46 | 654.97 | 66.13 | 345.34 | -12.23 | 48.88 | 8.25 | 204.09 | 0.3432 | -126.5 | -86.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.96 | 230.97 | 0.51 | 122.90 | -11.59 | 53.31 | 12.69 | 216.01 | 0.3675 | 1150.1 | 415.4 | |
| 12.04 | -1.00 | 6.42 | -1.00 | -11.83 | 53.23 | 12.61 | 215.44 | 0.3700 | 1152.6 | 999999 | |
| 1.48 | -1.00 | 0.79 | -1.00 | -11.67 | 52.88 | 12.25 | 214.94 | 0.3646 | 1305.2 | 999999 | |
| 1.83 | -1.00 | 0.98 | -1.00 | -11.89 | 52.85 | 12.23 | 214.54 | 0.3673 | 993.4 | 999999 | |
| 22.95 | -1.00 | 12.19 | -1.00 | -11.85 | 52.42 | 11.79 | 213.64 | 0.3627 | 1300.8 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -11.80 | 51.60 | 10.98 | 211.85 | 0.3549 | 874.0 | 765.3 | |
| 1.48 | 1.57 | 0.78 | 0.83 | -11.61 | 51.57 | 10.94 | 212.05 | 0.3520 | 952.1 | 927.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.53 | 51.18 | 10.56 | 206.02 | 0.4042 | 756.0 | 602.8 | |
| 10.38 | 15.36 | 5.48 | 8.11 | -11.84 | 50.64 | 10.02 | 209.49 | 0.3475 | 1083.4 | 754.6 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -12.47 | 50.45 | 9.83 | 208.14 | 0.3550 | 905.0 | 703.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -11.43 | 50.26 | 9.64 | 209.13 | 0.3385 | 886.0 | 746.3 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.21 | 49.82 | 9.20 | 209.85 | 0.3174 | 787.0 | 638.0 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -12.31 | 48.56 | 7.94 | 203.55 | 0.3391 | 643.0 | 527.7 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -11.96 | 48.39 | 7.77 | 203.53 | 0.3328 | 893.0 | 677.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -12.93 | 47.49 | 6.87 | 200.03 | 0.3421 | -709.0 | -476.1 | |
| 1.83 | 396.50 | 0.96 | 207.92 | -12.35 | 46.89 | 6.27 | 198.97 | 0.3299 | -886.6 | -421.4 | |
| 12.13 | -16.00 | 6.39 | -16.00 | -13.17 | 46.85 | 6.23 | 198.06 | 0.3424 | -1047.9 | 999999 | |
| 11.34 | -16.00 | 5.93 | -16.00 | -11.94 | 46.79 | 6.17 | 199.09 | 0.3229 | -1355.3 | 999999 | |
| 49.04 | -16.00 | 25.70 | -16.00 | -12.44 | 46.34 | 5.72 | 197.32 | 0.3284 | -1191.6 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -11.76 | 43.54 | 2.92 | 189.41 | 0.3067 | -860.0 | -634.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
