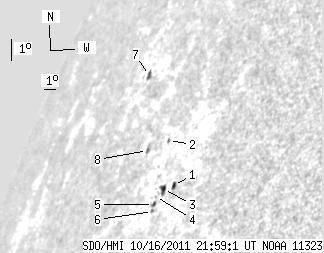

SDO HMI 2011-10-16 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.39 | 19.10 | 14.18 | 26.04 | 24.11 | 331.41 | -69.22 | 66.34 | 0.9325 | -165.7 | -53.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-16 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.36 | 2.79 | 2.93 | 3.48 | 23.47 | 333.65 | -66.97 | 66.89 | 0.9195 | -450.3 | -455.8 | |
| 0.00 | 1.48 | 0.00 | 1.99 | 24.76 | 331.77 | -68.85 | 65.62 | 0.9313 | 2.0 | -47.8 | |
| 3.84 | 4.89 | 4.91 | 6.25 | 23.28 | 333.00 | -67.63 | 67.14 | 0.9235 | -407.5 | -276.7 | |
| 0.00 | 0.87 | 0.00 | 1.13 | 23.02 | 332.58 | -68.04 | 67.45 | 0.9259 | -250.0 | -260.6 | |
| 1.57 | 2.36 | 2.03 | 3.04 | 22.77 | 332.67 | -67.96 | 67.71 | 0.9253 | -490.2 | -356.6 | |
| 0.00 | 1.22 | 0.00 | 1.57 | 22.56 | 332.80 | -67.82 | 67.94 | 0.9244 | -494.0 | -428.2 | |
| 2.62 | 3.40 | 4.31 | 5.60 | 26.49 | 327.36 | -73.26 | 64.01 | 0.9548 | 351.2 | 288.8 | |
| 0.00 | 2.09 | 0.00 | 2.98 | 24.30 | 330.34 | -70.28 | 66.19 | 0.9392 | 531.0 | 345.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
