group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	294.33	1095.37	149.91	557.80	10.36	52.09	12.02	293.97	0.2264	-203.2	-96.8

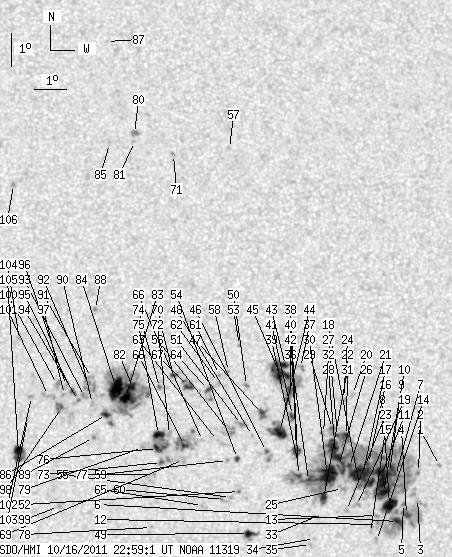

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-16 22:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.66	0.00	0.86	9.59	57.22	17.15	283.71	0.3007	909.0	673.8
2	0.00	1.57	0.00	0.81	9.40	56.55	16.48	283.52	0.2891	-667.0	-521.8
3	0.00	8.99	0.00	4.64	8.62	56.48	16.41	280.89	0.2857	-370.0	-495.3
4	4.36	25.57	2.25	13.20	8.15	56.11	16.04	279.43	0.2786	-853.2	-302.7
5	1.22	2.01	0.63	1.03	8.49	56.03	15.96	280.65	0.2780	-565.1	-286.9
6	4.97	514.70	2.56	263.99	7.95	55.82	15.75	278.83	0.2733	-1038.3	-522.7
7	1.66	-6.00	0.85	-6.00	9.33	55.82	15.75	283.79	0.2770	-645.0	999999
8	14.31	-6.00	7.36	-6.00	8.44	55.59	15.52	280.72	0.2706	-1121.7	999999
9	4.89	-6.00	2.52	-6.00	9.42	55.63	15.57	284.27	0.2744	-911.3	999999
10	7.85	-6.00	4.04	-6.00	8.83	55.42	15.35	282.27	0.2689	-1120.3	999999
11	19.20	-6.00	9.87	-6.00	9.28	55.34	15.28	283.97	0.2692	-1207.5	999999
12	0.00	1.92	0.00	0.99	7.88	55.19	15.12	278.84	0.2627	-769.0	-716.0
13	0.00	1.92	0.00	0.99	8.15	55.17	15.10	279.87	0.2630	-1066.0	-833.6
14	0.00	2.44	0.00	1.25	7.40	55.14	15.08	277.04	0.2611	-658.0	-635.3
15	0.00	0.87	0.00	0.45	7.65	54.97	14.90	278.05	0.2585	-702.0	-594.1
16	1.66	-6.00	0.85	-6.00	9.71	54.99	14.92	285.84	0.2650	-932.9	999999
17	30.54	-6.00	15.66	-6.00	9.36	54.78	14.72	284.70	0.2603	-1270.5	999999
18	1.75	-6.00	0.89	-6.00	9.06	54.68	14.61	283.66	0.2575	-890.3	999999
19	0.00	3.58	0.00	1.83	8.46	54.56	14.49	281.44	0.2537	-723.0	-662.6
20	0.00	2.18	0.00	1.12	11.79	54.59	14.52	293.75	0.2693	-845.0	-675.6
21	2.44	-6.00	1.25	-6.00	9.64	54.39	14.32	286.11	0.2550	-1119.1	999999
22	2.44	-6.00	1.25	-6.00	10.57	54.34	14.27	289.67	0.2585	666.6	999999
23	0.00	2.97	0.00	1.52	8.32	54.24	14.17	281.09	0.2480	-831.0	-672.6
24	0.00	2.88	0.00	1.48	11.65	54.30	14.23	293.64	0.2640	-822.0	-670.5
25	0.00	4.54	0.00	2.32	8.98	54.14	14.07	283.79	0.2485	-862.0	-733.8
26	1.05	-6.00	0.54	-6.00	9.67	54.05	13.98	286.59	0.2496	-1163.9	999999
27	1.31	-6.00	0.67	-6.00	10.60	54.06	13.99	290.13	0.2542	-664.3	999999
28	25.39	-6.00	12.99	-6.00	10.04	53.97	13.90	288.08	0.2500	-1134.1	999999
29	1.83	-6.00	0.94	-6.00	10.79	53.91	13.84	291.01	0.2529	-606.3	999999
30	23.13	-6.00	11.80	-6.00	9.38	53.69	13.62	285.80	0.2426	-1353.7	999999
31	6.28	-6.00	3.20	-6.00	8.70	53.54	13.47	283.14	0.2376	-1004.8	999999
32	0.00	3.05	0.00	1.56	10.64	53.62	13.55	290.83	0.2475	-273.0	-390.7
33	0.00	2.09	0.00	1.07	8.16	53.31	13.24	281.08	0.2320	-545.0	-590.5
34	0.00	0.79	0.00	0.40	7.51	53.22	13.15	278.30	0.2290	-897.0	-746.8
35	0.00	1.22	0.00	0.62	7.33	53.09	13.02	277.59	0.2265	-764.0	-627.7
36	1.31	-6.00	0.67	-6.00	9.25	53.10	13.03	285.84	0.2323	-1135.9	999999
37	0.00	3.93	0.00	2.01	12.64	53.00	12.93	299.20	0.2512	531.0	584.5
38	2.36	-6.00	1.20	-6.00	9.40	52.79	12.72	286.83	0.2280	-1215.4	999999
39	0.00	1.40	0.00	0.71	9.73	52.80	12.73	288.21	0.2298	-981.0	-713.2
40	6.28	10.47	3.20	5.33	10.15	52.76	12.69	290.02	0.2312	-1133.5	-692.8
41	2.36	9.77	1.20	4.98	11.20	52.68	12.61	294.37	0.2362	-872.4	-554.6
42	6.20	76.27	3.16	38.92	11.96	52.65	12.58	297.31	0.2409	832.6	297.8
43	3.75	-42.00	1.92	-42.00	12.71	52.53	12.46	300.32	0.2449	797.8	999999
44	11.34	20.42	5.77	10.38	10.70	52.25	12.18	293.03	0.2264	-1168.4	-837.5
45	19.55	-42.00	9.97	-42.00	12.50	52.33	12.26	299.94	0.2404	1113.2	999999
46	1.83	5.67	0.93	2.88	10.14	51.83	11.76	291.31	0.2163	-843.5	-876.3
47	4.80	7.94	2.44	4.03	11.28	51.75	11.68	296.29	0.2224	-962.9	-715.4
48	0.00	1.05	0.00	0.53	10.63	51.41	11.34	294.13	0.2128	572.0	418.1
49	4.19	7.24	2.12	3.66	7.70	51.19	11.12	280.52	0.1954	979.6	714.3
50	0.00	2.01	0.00	1.02	12.13	51.28	11.22	300.64	0.2220	-1083.0	-797.6
51	0.00	4.89	0.00	2.48	10.97	51.08	11.01	296.21	0.2100	-1111.0	-848.7
52	0.00	1.57	0.00	0.79	8.96	50.95	10.88	287.11	0.1960	683.0	427.3
53	0.00	1.31	0.00	0.67	13.34	51.12	11.05	305.59	0.2304	-982.0	-705.1
54	2.36	3.14	1.19	1.59	9.95	50.92	10.85	291.91	0.2008	-822.9	-611.9
55	0.00	1.48	0.00	0.75	8.79	50.67	10.60	286.62	0.1906	575.0	359.5
56	0.00	9.95	0.00	5.03	10.76	50.70	10.63	296.06	0.2027	-862.0	-617.8
57	0.00	1.57	0.00	0.82	19.33	51.15	11.08	322.49	0.2991	-687.0	-542.0
58	0.00	1.31	0.00	0.66	12.56	50.74	10.67	303.56	0.2179	794.0	564.9
59	0.00	1.66	0.00	0.84	9.90	50.61	10.54	292.20	0.1956	-882.0	-628.3
60	0.00	2.62	0.00	1.32	8.73	50.45	10.38	286.63	0.1868	814.0	715.6
61	0.00	1.13	0.00	0.58	12.48	50.46	10.39	303.91	0.2132	769.0	594.2
62	0.00	1.40	0.00	0.71	12.24	50.42	10.35	303.05	0.2104	683.0	546.3
63	0.00	0.87	0.00	0.44	10.50	50.32	10.25	295.63	0.1950	554.0	453.5
64	2.44	6.63	1.24	3.35	12.03	50.10	10.03	302.98	0.2040	727.6	642.9
65	0.00	1.57	0.00	0.79	8.56	49.80	9.74	286.68	0.1754	1043.0	743.5
66	0.00	1.48	0.00	0.75	10.51	49.86	9.79	296.67	0.1880	137.0	158.9
67	4.71	8.90	2.38	4.50	12.14	49.48	9.41	305.03	0.1962	972.2	818.8
68	3.23	27.75	1.63	13.97	10.37	49.30	9.23	297.27	0.1784	1176.3	594.5
69	0.00	4.71	0.00	2.37	9.95	49.26	9.19	295.21	0.1747	108.0	220.9
70	2.53	4.01	1.28	2.03	12.47	49.03	8.96	307.77	0.1933	861.4	483.8
71	0.00	1.75	0.00	0.90	19.18	49.34	9.27	326.87	0.2796	-965.0	-767.2
72	0.00	3.49	0.00	1.76	10.70	48.85	8.78	300.14	0.1743	-75.0	-64.7
73	1.75	7.07	0.88	3.55	9.87	48.58	8.51	296.44	0.1636	985.3	833.2
74	0.52	2.44	0.26	1.23	12.12	48.59	8.52	307.62	0.1837	911.0	579.4
75	6.20	24.52	3.11	12.32	10.71	48.51	8.44	301.12	0.1693	-912.1	620.9
76	4.36	-75.00	2.19	-75.00	10.29	48.47	8.40	299.04	0.1652	1188.2	999999
77	0.00	1.48	0.00	0.74	9.51	48.36	8.29	294.98	0.1576	852.0	660.2
78	0.00	0.96	0.00	0.48	7.93	48.23	8.16	285.36	0.1465	732.0	651.7
79	0.00	1.83	0.00	0.92	10.33	48.01	7.94	300.58	0.1586	-139.0	-53.3
80	0.00	4.10	0.00	2.11	19.84	48.12	8.05	331.63	0.2786	1003.0	911.9
81	0.00	0.87	0.00	0.45	19.60	48.11	8.04	331.21	0.2749	844.0	710.3
82	2.88	149.84	1.45	75.28	12.16	47.75	7.69	310.62	0.1730	958.2	531.6
83	7.85	-82.00	3.95	-82.00	11.83	47.53	7.46	309.93	0.1665	1355.8	999999
84	18.50	-82.00	9.29	-82.00	12.11	47.26	7.19	312.23	0.1661	1396.8	999999
85	0.00	1.22	0.00	0.63	19.54	47.31	7.24	333.56	0.2679	911.0	743.2
86	3.14	-82.00	1.57	-82.00	11.33	46.93	6.86	309.77	0.1532	1139.2	999999
87	0.00	0.35	0.00	0.18	22.71	47.37	7.30	338.13	0.3160	723.0	686.0
88	0.00	1.66	0.00	0.84	14.49	46.68	6.61	323.80	0.1896	927.0	709.2
89	0.00	1.57	0.00	0.79	10.64	46.52	6.45	307.77	0.1403	1011.0	841.4
90	0.00	2.01	0.00	1.01	11.66	46.51	6.44	313.22	0.1515	896.0	729.2
91	0.00	2.62	0.00	1.31	12.45	46.50	6.43	316.89	0.1608	672.0	643.4
92	0.00	11.87	0.00	5.95	12.18	46.43	6.36	315.99	0.1566	736.0	883.8
93	0.00	3.32	0.00	1.66	11.88	46.27	6.20	315.32	0.1510	1056.0	991.8
94	0.00	1.05	0.00	0.52	11.76	46.08	6.01	315.62	0.1474	1159.0	1014.5
95	2.09	3.75	1.05	1.88	12.03	45.91	5.84	317.75	0.1486	874.4	993.5
96	0.00	2.97	0.00	1.49	12.21	45.73	5.66	319.46	0.1489	875.0	644.9
97	0.00	1.92	0.00	0.96	11.94	45.66	5.59	318.56	0.1447	1008.0	745.3
98	0.00	8.38	0.00	4.19	11.55	45.56	5.49	317.19	0.1386	1186.0	898.3
99	0.00	1.75	0.00	0.87	8.59	45.42	5.35	298.28	0.1051	900.0	680.5
100	0.00	3.93	0.00	1.97	12.25	45.45	5.38	321.00	0.1463	947.0	794.5
101	0.00	6.37	0.00	3.19	11.92	45.17	5.10	321.01	0.1389	944.0	741.0
102	0.00	1.92	0.00	0.96	11.89	44.65	4.58	323.85	0.1330	993.0	781.5
103	0.00	0.79	0.00	0.39	11.23	44.51	4.44	321.47	0.1226	940.0	740.4
104	0.00	1.83	0.00	0.92	13.61	44.31	4.24	332.26	0.1551	694.0	643.7
105	11.52	16.23	5.74	8.09	10.19	44.22	4.16	317.27	0.1056	1109.3	821.7
106	0.00	2.44	0.00	1.24	18.32	44.22	4.15	342.46	0.2291	997.0	795.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
