SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.46 | 193.15 | 17.92 | 113.54 | -26.72 | 37.02 | -2.49 | 175.89 | 0.5409 | 1069.7 | 378.2 | |
|
previous
or next observation for the same group /

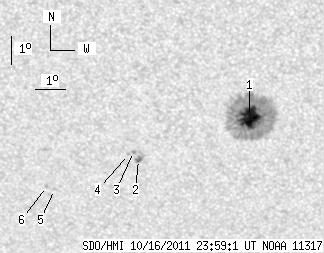

back to the solar disc SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.67 | 181.45 | 16.24 | 106.50 | -26.61 | 37.30 | -2.21 | 176.31 | 0.5388 | 1199.9 | 366.4 | |
| 2.79 | 6.37 | 1.68 | 3.82 | -28.15 | 33.50 | -6.02 | 170.59 | 0.5673 | 703.0 | 586.8 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -27.86 | 33.35 | -6.17 | 170.25 | 0.5636 | 775.0 | 738.8 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -27.97 | 33.17 | -6.35 | 170.02 | 0.5656 | 659.0 | 505.8 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -29.28 | 30.53 | -8.99 | 166.63 | 0.5914 | 634.0 | 484.9 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -29.17 | 30.26 | -9.26 | 166.20 | 0.5908 | 713.0 | 541.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
