SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.86 | 32.55 | 8.58 | 28.66 | 20.40 | 94.93 | 55.41 | 290.82 | 0.8276 | 197.9 | 13.3 | |
|
previous
or next observation for the same group /

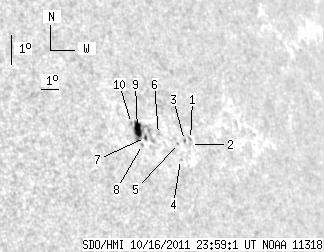

back to the solar disc SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 1.13 | 20.01 | 97.23 | 57.71 | 290.06 | 0.8477 | -420.0 | -298.6 | |
| 0.00 | 1.13 | 0.00 | 1.05 | 19.86 | 97.15 | 57.63 | 289.89 | 0.8468 | -503.0 | -413.1 | |
| 0.00 | 0.96 | 0.00 | 0.88 | 20.01 | 96.87 | 57.35 | 290.10 | 0.8446 | -462.0 | -441.9 | |
| 0.00 | 1.05 | 0.00 | 0.95 | 19.46 | 96.33 | 56.81 | 289.51 | 0.8393 | -405.0 | -347.4 | |
| 0.00 | 0.96 | 0.00 | 0.87 | 19.95 | 96.48 | 56.97 | 290.07 | 0.8411 | -395.0 | -340.8 | |
| 0.00 | 1.48 | 0.00 | 1.32 | 20.31 | 95.52 | 56.01 | 290.62 | 0.8329 | -257.0 | -246.9 | |
| 0.96 | 2.01 | 0.84 | 1.76 | 20.27 | 94.77 | 55.25 | 290.69 | 0.8260 | 162.3 | 162.0 | |
| 0.00 | 1.05 | 0.00 | 0.91 | 20.08 | 94.49 | 54.98 | 290.49 | 0.8233 | 550.0 | 491.2 | |
| 8.90 | 21.38 | 7.74 | 18.66 | 20.55 | 94.47 | 54.95 | 291.06 | 0.8236 | 576.6 | 113.9 | |
| 0.00 | 1.31 | 0.00 | 1.13 | 20.76 | 94.24 | 54.72 | 291.34 | 0.8218 | 575.0 | 480.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
