SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.51 | 18.68 | 12.28 | 24.49 | 24.18 | 331.31 | -68.21 | 66.21 | 0.9265 | -224.7 | 25.7 | |
|
previous
or next observation for the same group /

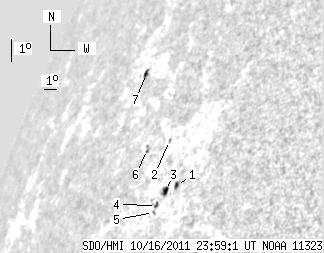

back to the solar disc SDO HMI 2011-10-16 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.01 | 2.62 | 2.40 | 3.13 | 23.48 | 333.76 | -65.76 | 66.79 | 0.9117 | -498.3 | -463.3 | |
| 0.00 | 1.40 | 0.00 | 1.80 | 24.77 | 331.82 | -67.70 | 65.54 | 0.9246 | -64.0 | -34.0 | |
| 3.40 | 4.80 | 4.16 | 5.87 | 23.26 | 333.08 | -66.44 | 67.08 | 0.9160 | -445.9 | -419.2 | |
| 2.18 | 2.27 | 2.69 | 2.80 | 22.76 | 332.84 | -66.68 | 67.65 | 0.9173 | -484.0 | -457.0 | |
| 0.00 | 1.57 | 0.00 | 1.93 | 22.53 | 332.81 | -66.71 | 67.90 | 0.9174 | -443.0 | -392.4 | |
| 0.00 | 2.53 | 0.00 | 3.46 | 24.34 | 330.33 | -69.19 | 66.09 | 0.9332 | 686.0 | 426.4 | |
| 1.92 | 3.49 | 3.03 | 5.50 | 26.55 | 327.18 | -72.33 | 63.91 | 0.9505 | 244.5 | 309.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
