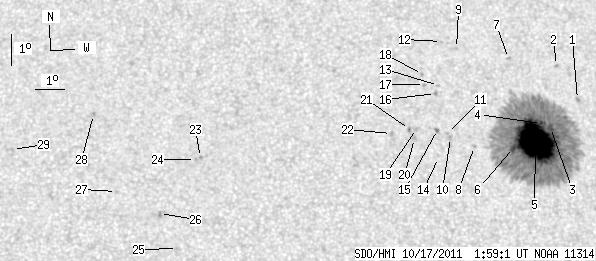

SDO HMI 2011-10-17 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.55 | 632.61 | 53.99 | 353.45 | 27.38 | 56.27 | 17.85 | 323.96 | 0.4641 | -1038.9 | -397.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.04 | 28.63 | 58.32 | 19.90 | 322.83 | 0.4964 | 838.0 | 711.0 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 29.76 | 57.78 | 19.36 | 325.05 | 0.5043 | 796.0 | 629.5 | |
| 2.71 | 596.68 | 1.52 | 333.68 | 27.76 | 57.18 | 18.76 | 323.12 | 0.4762 | -592.2 | -413.1 | |
| 1.22 | -3.00 | 0.69 | -3.00 | 27.90 | 56.88 | 18.47 | 323.72 | 0.4751 | -812.6 | 999999 | |
| 91.66 | -3.00 | 51.25 | -3.00 | 27.33 | 56.57 | 18.15 | 323.35 | 0.4656 | -1467.7 | 999999 | |
| 0.96 | -3.00 | 0.53 | -3.00 | 27.16 | 55.77 | 17.35 | 324.27 | 0.4563 | -1312.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 30.04 | 56.09 | 17.67 | 327.68 | 0.4934 | -653.0 | -489.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 27.22 | 54.41 | 15.99 | 326.45 | 0.4451 | -823.0 | -661.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 30.42 | 54.27 | 15.86 | 330.74 | 0.4840 | -698.0 | -498.9 | |
| 0.00 | 2.18 | 0.00 | 1.20 | 27.53 | 53.62 | 15.20 | 328.14 | 0.4423 | -922.0 | -559.0 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 27.67 | 53.53 | 15.11 | 328.46 | 0.4432 | -668.0 | -534.1 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 30.66 | 53.77 | 15.36 | 331.76 | 0.4834 | -659.0 | -596.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 29.23 | 53.44 | 15.02 | 330.58 | 0.4625 | -703.0 | -556.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 26.90 | 53.11 | 14.69 | 328.12 | 0.4300 | -138.0 | -219.0 | |
| 0.00 | 1.57 | 0.00 | 0.87 | 27.80 | 53.20 | 14.78 | 329.18 | 0.4423 | -808.0 | -669.9 | |
| 0.00 | 1.92 | 0.00 | 1.07 | 28.97 | 53.30 | 14.88 | 330.50 | 0.4581 | -830.0 | -676.0 | |
| 0.00 | 1.48 | 0.00 | 0.83 | 29.27 | 52.95 | 14.53 | 331.41 | 0.4594 | -976.0 | -762.4 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 29.60 | 52.93 | 14.51 | 331.84 | 0.4635 | -743.0 | -600.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | 27.85 | 52.47 | 14.06 | 330.45 | 0.4372 | -794.0 | -632.3 | |
| 0.00 | 2.27 | 0.00 | 1.25 | 27.53 | 52.36 | 13.94 | 330.23 | 0.4321 | -876.0 | -668.1 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 27.83 | 52.23 | 13.81 | 330.84 | 0.4350 | -927.0 | -797.3 | |
| 0.00 | 2.27 | 0.00 | 1.24 | 27.71 | 51.59 | 13.17 | 331.80 | 0.4286 | -742.0 | -625.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 27.05 | 45.00 | 6.58 | 344.32 | 0.3793 | 823.0 | 715.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 26.98 | 44.83 | 6.41 | 344.66 | 0.3776 | 811.0 | 603.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 24.16 | 44.08 | 5.66 | 344.10 | 0.3301 | 808.0 | 647.2 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 25.27 | 43.54 | 5.12 | 346.43 | 0.3455 | 805.0 | 751.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 25.98 | 42.13 | 3.72 | 350.44 | 0.3523 | 780.0 | 600.7 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 28.46 | 41.43 | 3.02 | 353.16 | 0.3905 | 810.0 | 711.4 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 27.34 | 38.68 | 0.26 | 359.37 | 0.3694 | 802.0 | 628.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
