SDO HMI 2011-10-17 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.93 | 37.45 | 13.33 | 33.74 | 20.39 | 94.88 | 56.46 | 290.67 | 0.8371 | 261.4 | 36.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

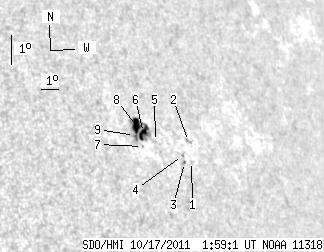

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.74 | 19.32 | 96.95 | 58.53 | 289.16 | 0.8542 | -503.0 | -445.4 | |
| 0.00 | 2.18 | 0.00 | 2.08 | 19.93 | 97.12 | 58.71 | 289.85 | 0.8562 | -627.0 | -464.7 | |
| 0.00 | 1.05 | 0.00 | 0.98 | 19.32 | 96.52 | 58.11 | 289.21 | 0.8505 | -361.0 | -424.8 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 19.54 | 96.53 | 58.11 | 289.46 | 0.8508 | -389.0 | -460.5 | |
| 0.00 | 1.13 | 0.00 | 1.03 | 20.08 | 95.23 | 56.82 | 290.26 | 0.8400 | -426.0 | -368.6 | |
| 5.85 | 30.64 | 5.24 | 27.39 | 20.41 | 94.72 | 56.30 | 290.71 | 0.8357 | 327.4 | 208.1 | |
| 0.00 | 0.79 | 0.00 | 0.70 | 19.99 | 94.43 | 56.01 | 290.25 | 0.8327 | 444.0 | 417.6 | |
| 8.12 | -6.00 | 7.24 | -6.00 | 20.65 | 94.45 | 56.03 | 291.03 | 0.8336 | 651.2 | 999999 | |
| 0.96 | -6.00 | 0.85 | -6.00 | 20.36 | 94.17 | 55.75 | 290.72 | 0.8308 | 569.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
