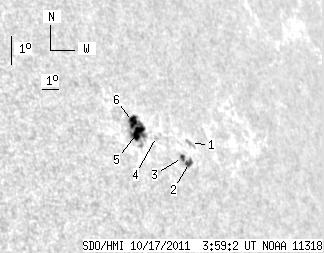

SDO HMI 2011-10-17 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.61 | 44.70 | 19.22 | 41.69 | 20.28 | 95.15 | 57.83 | 290.39 | 0.8490 | 175.0 | 17.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.93 | 0.00 | 3.88 | 19.84 | 97.37 | 60.05 | 289.62 | 0.8673 | -454.0 | -315.6 | |
| 3.93 | 8.03 | 3.83 | 7.80 | 19.28 | 96.96 | 59.64 | 289.01 | 0.8635 | -532.7 | -517.3 | |
| 2.36 | -2.00 | 2.28 | -2.00 | 19.46 | 96.63 | 59.31 | 289.26 | 0.8609 | -645.0 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 20.22 | 95.48 | 58.16 | 290.26 | 0.8518 | -262.0 | -251.2 | |
| 7.60 | 32.39 | 6.96 | 29.68 | 20.42 | 94.46 | 57.14 | 290.63 | 0.8432 | 553.8 | 155.1 | |
| 6.72 | -5.00 | 6.15 | -5.00 | 20.78 | 94.37 | 57.05 | 291.06 | 0.8428 | 664.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
