SDO HMI 2011-10-17 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.97 | 1166.07 | 143.17 | 601.50 | 10.17 | 52.55 | 15.23 | 288.75 | 0.2749 | -154.5 | -158.2 | |
|
previous
or next observation for the same group /

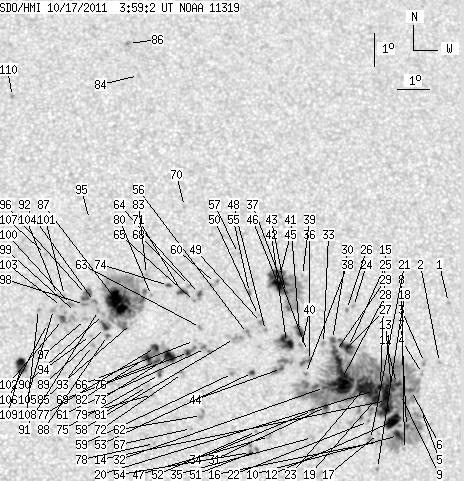

back to the solar disc SDO HMI 2011-10-17 03:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.79 | 11.74 | 57.80 | 20.48 | 287.90 | 0.3615 | -805.0 | -635.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 9.96 | 57.38 | 20.06 | 283.22 | 0.3485 | 746.0 | 528.8 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 9.97 | 56.89 | 19.57 | 283.52 | 0.3409 | -693.0 | -499.7 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 9.64 | 56.81 | 19.49 | 282.61 | 0.3385 | -752.0 | -546.3 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 8.54 | 56.72 | 19.39 | 279.39 | 0.3343 | -150.0 | -109.0 | |
| 2.36 | 635.98 | 1.24 | 331.16 | 9.15 | 56.43 | 19.11 | 281.33 | 0.3311 | -361.3 | -485.3 | |
| 1.66 | -6.00 | 0.87 | -6.00 | 8.08 | 56.21 | 18.89 | 278.16 | 0.3253 | -809.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 7.39 | 56.12 | 18.80 | 276.07 | 0.3227 | -439.0 | -364.6 | |
| 1.40 | -6.00 | 0.73 | -6.00 | 9.04 | 56.07 | 18.75 | 281.16 | 0.3250 | -439.6 | 999999 | |
| 5.15 | -6.00 | 2.69 | -6.00 | 7.82 | 55.94 | 18.62 | 277.43 | 0.3205 | -1022.5 | 999999 | |
| 4.28 | -6.00 | 2.24 | -6.00 | 9.37 | 55.96 | 18.64 | 282.23 | 0.3241 | -830.8 | 999999 | |
| 12.83 | -6.00 | 6.70 | -6.00 | 8.24 | 55.77 | 18.45 | 278.81 | 0.3184 | -1158.2 | 999999 | |
| 2.79 | -6.00 | 1.46 | -6.00 | 9.20 | 55.79 | 18.47 | 281.79 | 0.3209 | -897.8 | 999999 | |
| 28.46 | -6.00 | 14.86 | -6.00 | 8.87 | 55.61 | 18.29 | 280.86 | 0.3172 | -1119.9 | 999999 | |
| 2.97 | -6.00 | 1.55 | -6.00 | 9.33 | 55.45 | 18.13 | 282.37 | 0.3157 | -1107.1 | 999999 | |
| 0.00 | 5.15 | 0.00 | 2.68 | 7.66 | 55.33 | 18.01 | 277.09 | 0.3102 | -812.0 | -568.7 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 7.90 | 55.31 | 17.99 | 277.87 | 0.3102 | -981.0 | -776.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 6.85 | 55.24 | 17.92 | 274.50 | 0.3078 | -888.0 | -756.6 | |
| 6.72 | -6.00 | 3.50 | -6.00 | 8.91 | 55.27 | 17.95 | 281.16 | 0.3116 | -1284.2 | 999999 | |
| 0.35 | -6.00 | 0.18 | -6.00 | 9.18 | 55.25 | 17.93 | 282.02 | 0.3121 | -1378.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 7.72 | 55.05 | 17.73 | 277.40 | 0.3057 | -949.0 | -813.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 8.26 | 55.01 | 17.69 | 279.17 | 0.3060 | -873.0 | -728.6 | |
| 25.06 | -6.00 | 13.04 | -6.00 | 9.31 | 54.97 | 17.65 | 282.59 | 0.3079 | -1245.4 | 999999 | |
| 0.00 | 1.83 | 0.00 | 0.96 | 11.72 | 54.73 | 17.41 | 290.33 | 0.3138 | -909.0 | -713.1 | |
| 4.37 | -6.00 | 2.27 | -6.00 | 10.53 | 54.50 | 17.17 | 286.80 | 0.3046 | 482.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 11.64 | 54.50 | 17.18 | 290.29 | 0.3098 | -913.0 | -797.9 | |
| 4.71 | -6.00 | 2.45 | -6.00 | 10.47 | 54.40 | 17.08 | 286.70 | 0.3028 | -505.6 | 999999 | |
| 41.12 | -6.00 | 21.32 | -6.00 | 9.54 | 54.22 | 16.90 | 283.81 | 0.2965 | -1297.6 | 999999 | |
| 1.48 | -6.00 | 0.77 | -6.00 | 10.39 | 54.07 | 16.75 | 286.70 | 0.2973 | -945.3 | 999999 | |
| 2.97 | -6.00 | 1.54 | -6.00 | 10.75 | 54.00 | 16.68 | 287.95 | 0.2977 | -752.1 | 999999 | |
| 1.83 | -6.00 | 0.95 | -6.00 | 8.75 | 53.71 | 16.39 | 281.43 | 0.2858 | -959.2 | 999999 | |
| 1.22 | -6.00 | 0.63 | -6.00 | 9.32 | 53.67 | 16.35 | 283.42 | 0.2869 | -1083.1 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 10.64 | 53.71 | 16.39 | 287.84 | 0.2926 | -857.0 | -626.1 | |
| 1.40 | -6.00 | 0.72 | -6.00 | 8.64 | 53.26 | 15.94 | 281.31 | 0.2782 | -886.8 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.35 | 7.84 | 53.23 | 15.91 | 278.43 | 0.2757 | -650.0 | -501.8 | |
| 1.31 | 6.46 | 0.68 | 3.33 | 10.14 | 53.24 | 15.92 | 286.58 | 0.2829 | -963.7 | -980.5 | |
| 0.00 | 2.10 | 0.00 | 1.08 | 10.41 | 53.19 | 15.87 | 287.55 | 0.2833 | -776.0 | -607.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 9.76 | 53.09 | 15.77 | 285.36 | 0.2791 | -1087.0 | -905.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 12.70 | 53.16 | 15.84 | 295.09 | 0.2954 | 649.0 | 404.1 | |
| 0.00 | 2.44 | 0.00 | 1.26 | 10.57 | 53.01 | 15.69 | 288.25 | 0.2811 | -848.0 | -701.0 | |
| 6.02 | 7.07 | 3.11 | 3.65 | 11.02 | 52.97 | 15.65 | 289.83 | 0.2827 | -1035.0 | -823.3 | |
| 11.96 | 21.74 | 6.16 | 11.19 | 10.70 | 52.54 | 15.22 | 289.18 | 0.2744 | -1192.1 | -688.3 | |
| 1.31 | 81.99 | 0.68 | 42.36 | 12.20 | 52.59 | 15.27 | 294.22 | 0.2836 | 1013.6 | 414.1 | |
| 1.48 | 15.80 | 0.76 | 8.12 | 9.92 | 52.35 | 15.03 | 286.61 | 0.2677 | -1039.5 | -868.9 | |
| 0.96 | -43.00 | 0.50 | -43.00 | 12.69 | 52.43 | 15.11 | 296.02 | 0.2843 | 1049.5 | 999999 | |
| 8.73 | -43.00 | 4.51 | -43.00 | 12.45 | 52.39 | 15.07 | 295.30 | 0.2820 | 1207.0 | 999999 | |
| 0.00 | 2.62 | 0.00 | 1.34 | 7.90 | 51.89 | 14.57 | 279.29 | 0.2536 | 461.0 | 271.0 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 11.08 | 51.90 | 14.58 | 291.24 | 0.2662 | -991.0 | -846.4 | |
| 0.00 | 3.49 | 0.00 | 1.79 | 11.32 | 51.79 | 14.47 | 292.24 | 0.2658 | -891.0 | -789.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 11.53 | 51.70 | 14.38 | 293.10 | 0.2658 | -697.0 | -565.4 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 7.49 | 51.50 | 14.18 | 277.84 | 0.2463 | 939.0 | 755.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 8.06 | 51.49 | 14.17 | 280.14 | 0.2473 | -915.0 | -660.1 | |
| 1.92 | 2.62 | 0.98 | 1.34 | 9.83 | 51.43 | 14.11 | 287.14 | 0.2526 | -849.4 | -790.8 | |
| 1.14 | 3.58 | 0.58 | 1.83 | 7.44 | 51.28 | 13.96 | 277.71 | 0.2425 | 941.3 | 842.8 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 12.23 | 51.46 | 14.14 | 295.88 | 0.2665 | -958.0 | -761.1 | |
| 0.00 | 3.23 | 0.00 | 1.66 | 11.00 | 51.33 | 14.01 | 291.67 | 0.2569 | -884.0 | -845.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.41 | 51.18 | 13.86 | 300.31 | 0.2710 | -473.0 | -405.2 | |
| 0.00 | 10.74 | 0.00 | 5.49 | 10.86 | 50.92 | 13.60 | 291.69 | 0.2496 | -880.0 | -549.2 | |
| 0.00 | 2.10 | 0.00 | 1.07 | 9.81 | 50.81 | 13.49 | 287.76 | 0.2424 | -591.0 | -422.9 | |
| 0.00 | 3.49 | 0.00 | 1.79 | 12.52 | 50.40 | 13.08 | 298.61 | 0.2528 | 671.0 | 598.4 | |
| 0.00 | 5.76 | 0.00 | 2.93 | 10.58 | 50.00 | 12.68 | 291.88 | 0.2335 | 831.0 | 626.4 | |
| 0.00 | 4.63 | 0.00 | 2.35 | 8.58 | 49.80 | 12.48 | 283.60 | 0.2208 | 1032.0 | 783.0 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 11.21 | 49.87 | 12.55 | 294.60 | 0.2355 | -995.0 | -747.7 | |
| 1.92 | 3.49 | 0.98 | 1.78 | 12.23 | 49.89 | 12.57 | 298.47 | 0.2430 | 802.3 | 681.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.00 | 49.72 | 12.40 | 297.89 | 0.2387 | 869.0 | 710.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 10.83 | 49.67 | 12.35 | 293.38 | 0.2298 | -512.0 | -347.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 8.20 | 49.48 | 12.16 | 282.16 | 0.2142 | 793.0 | 612.8 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 12.48 | 49.58 | 12.26 | 299.94 | 0.2404 | 832.0 | 588.3 | |
| 2.53 | 5.59 | 1.29 | 2.84 | 10.47 | 49.46 | 12.14 | 292.23 | 0.2245 | 945.3 | 821.5 | |
| 0.00 | 1.57 | 0.00 | 0.81 | 14.87 | 49.55 | 12.23 | 308.11 | 0.2615 | 746.0 | 573.3 | |
| 3.58 | 6.02 | 1.82 | 3.07 | 12.28 | 49.36 | 12.04 | 299.62 | 0.2354 | 1031.9 | 797.0 | |
| 0.00 | 3.06 | 0.00 | 1.55 | 9.85 | 49.25 | 11.93 | 289.86 | 0.2176 | 599.0 | 582.3 | |
| 9.69 | 46.80 | 4.91 | 23.71 | 10.36 | 48.87 | 11.55 | 292.71 | 0.2145 | 989.6 | 391.9 | |
| 1.66 | 1.92 | 0.84 | 0.98 | 12.49 | 48.93 | 11.61 | 301.31 | 0.2310 | 759.5 | 852.3 | |
| 1.92 | 3.41 | 0.97 | 1.72 | 9.83 | 48.54 | 11.22 | 290.86 | 0.2061 | 925.6 | 906.6 | |
| 2.27 | -73.00 | 1.15 | -73.00 | 10.22 | 48.46 | 11.14 | 292.77 | 0.2072 | 1193.7 | 999999 | |
| 3.93 | -73.00 | 1.99 | -73.00 | 10.64 | 48.45 | 11.13 | 294.68 | 0.2097 | -936.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 7.77 | 48.33 | 11.00 | 281.09 | 0.1936 | 760.0 | 601.0 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 9.24 | 48.31 | 10.99 | 288.42 | 0.1992 | 732.0 | 602.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.20 | 48.38 | 11.06 | 301.34 | 0.2206 | 723.0 | 519.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 9.48 | 48.16 | 10.84 | 289.81 | 0.1981 | 826.0 | 704.3 | |
| 4.19 | -73.00 | 2.12 | -73.00 | 10.35 | 48.16 | 10.84 | 293.89 | 0.2032 | 1044.9 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.84 | 48.26 | 10.94 | 304.09 | 0.2244 | 323.0 | 139.0 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 18.88 | 48.34 | 11.02 | 321.70 | 0.2931 | 674.0 | 462.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 11.37 | 47.73 | 10.41 | 299.36 | 0.2042 | 740.0 | 506.7 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 19.87 | 48.08 | 10.76 | 324.44 | 0.3033 | 1031.0 | 882.5 | |
| 37.63 | 158.04 | 19.04 | 79.99 | 12.01 | 47.35 | 10.03 | 302.99 | 0.2041 | 1322.1 | 439.1 | |
| 1.48 | 2.79 | 0.75 | 1.41 | 11.03 | 46.98 | 9.66 | 299.57 | 0.1902 | 799.1 | 699.1 | |
| 3.49 | -87.00 | 1.76 | -87.00 | 11.27 | 46.92 | 9.60 | 300.81 | 0.1914 | 1018.8 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 11.66 | 46.87 | 9.55 | 302.70 | 0.1940 | 948.0 | 793.9 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 11.78 | 46.72 | 9.40 | 303.64 | 0.1930 | 1077.0 | 879.2 | |
| 0.00 | 3.14 | 0.00 | 1.59 | 12.05 | 46.61 | 9.29 | 305.14 | 0.1939 | 1083.0 | 888.6 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 10.73 | 46.50 | 9.18 | 299.35 | 0.1807 | 981.0 | 734.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 11.04 | 46.45 | 9.13 | 300.94 | 0.1825 | 877.0 | 739.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.53 | 46.55 | 9.23 | 314.74 | 0.2196 | 793.0 | 615.2 | |
| 0.00 | 9.52 | 0.00 | 4.80 | 12.27 | 46.37 | 9.05 | 306.75 | 0.1927 | 1120.0 | 968.4 | |
| 0.00 | 2.10 | 0.00 | 1.06 | 11.52 | 46.31 | 8.99 | 303.59 | 0.1847 | 786.0 | 683.0 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 11.97 | 46.30 | 8.98 | 305.67 | 0.1888 | 1229.0 | 1026.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 11.73 | 46.01 | 8.69 | 305.46 | 0.1825 | 1091.0 | 838.8 | |
| 0.00 | 2.53 | 0.00 | 1.28 | 11.98 | 45.90 | 8.58 | 306.91 | 0.1833 | 1244.0 | 1016.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 12.25 | 45.69 | 8.37 | 308.78 | 0.1833 | 818.0 | 621.5 | |
| 3.32 | 9.69 | 1.67 | 4.88 | 11.53 | 45.60 | 8.28 | 305.78 | 0.1748 | 1106.9 | 896.4 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 11.92 | 45.59 | 8.26 | 307.65 | 0.1785 | 1119.0 | 927.8 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 12.25 | 45.47 | 8.15 | 309.51 | 0.1804 | 832.0 | 654.1 | |
| 0.00 | 2.79 | 0.00 | 1.41 | 11.83 | 45.34 | 8.02 | 308.08 | 0.1742 | 926.0 | 805.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.41 | 45.14 | 7.82 | 306.77 | 0.1672 | 1020.0 | 770.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 13.49 | 45.14 | 7.82 | 315.71 | 0.1903 | 849.0 | 624.1 | |
| 0.00 | 1.57 | 0.00 | 0.79 | 11.84 | 44.87 | 7.55 | 309.73 | 0.1681 | 928.0 | 731.4 | |
| 12.40 | 13.62 | 6.21 | 6.82 | 10.17 | 44.31 | 6.99 | 302.98 | 0.1435 | 1078.6 | 729.4 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 18.30 | 44.28 | 6.96 | 332.16 | 0.2477 | 971.0 | 726.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
