SDO HMI 2011-10-17 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.35 | 43.65 | 19.25 | 41.47 | 20.21 | 95.28 | 58.51 | 290.23 | 0.8547 | 202.4 | -23.3 | |
|
previous
or next observation for the same group /

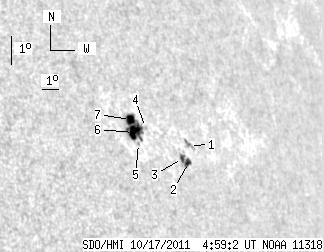

back to the solar disc SDO HMI 2011-10-17 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.06 | 0.00 | 5.09 | 19.76 | 97.42 | 60.65 | 289.48 | 0.8721 | -437.0 | -265.8 | |
| 3.58 | 8.82 | 3.55 | 8.72 | 19.25 | 97.04 | 60.26 | 288.94 | 0.8687 | -477.3 | -595.8 | |
| 2.71 | -2.00 | 2.67 | -2.00 | 19.40 | 96.75 | 59.97 | 289.14 | 0.8664 | -719.4 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 20.52 | 95.11 | 58.34 | 290.59 | 0.8537 | -475.0 | -435.0 | |
| 0.00 | 1.22 | 0.00 | 1.13 | 20.07 | 94.42 | 57.65 | 290.15 | 0.8473 | 388.0 | 314.4 | |
| 8.12 | 28.20 | 7.52 | 26.20 | 20.42 | 94.33 | 57.56 | 290.58 | 0.8469 | 643.5 | 160.4 | |
| 5.94 | -6.00 | 5.51 | -6.00 | 20.83 | 94.39 | 57.62 | 291.04 | 0.8478 | 690.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
