groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11319 275.06 1213.27 141.99 627.11 10.29 52.29 15.52 288.84 0.2803 -120.8 -144.6


previous   or   next   observation for the same group / back to the solar disc

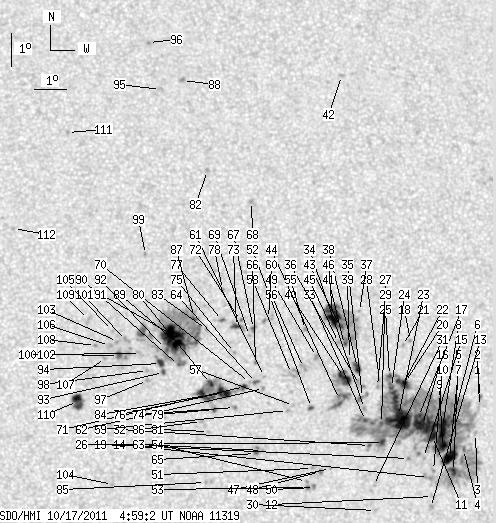

SDO HMI 2011-10-17 04:59:02 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 2.01 0.00 1.06 9.98 56.93 20.16 283.25 0.3502 -738.0 -449.7
2 0.00 2.27 0.00 1.20 9.71 56.88 20.11 282.52 0.3486 -827.0 -590.2
3 0.00 1.92 0.00 1.01 8.91 56.70 19.93 280.29 0.3438 128.0 66.0
4 1.14 624.66 0.60 326.33 8.44 56.29 19.52 279.08 0.3362 -504.8 -481.5
5 3.49 -4.00 1.83 -4.00 7.80 55.94 19.17 277.24 0.3293 -1104.0 999999
6 1.22 -4.00 0.64 -4.00 9.29 55.99 19.21 281.73 0.3331 -892.1 999999
7 13.71 -4.00 7.19 -4.00 8.22 55.83 19.06 278.56 0.3283 -1136.3 999999
8 22.27 -4.00 11.67 -4.00 9.12 55.66 18.88 281.37 0.3274 -1117.8 999999
9 8.21 -4.00 4.30 -4.00 8.55 55.63 18.85 279.66 0.3256 -1197.1 999999
10 0.00 2.01 0.00 1.05 7.85 55.30 18.53 277.57 0.3190 -1059.0 -819.9
11 6.20 -4.00 3.24 -4.00 8.86 55.32 18.55 280.73 0.3213 -1280.2 999999
12 0.00 1.92 0.00 1.00 7.07 55.24 18.47 275.14 0.3170 -738.0 -609.0
13 0.00 2.53 0.00 1.32 6.74 55.16 18.39 274.12 0.3155 -702.0 -658.8
14 0.00 5.33 0.00 2.78 7.64 55.14 18.36 276.98 0.3160 -809.0 -771.5
15 0.00 1.75 0.00 0.91 8.24 55.00 18.23 278.93 0.3148 -792.0 -720.1
16 20.08 -4.00 10.49 -4.00 9.23 55.02 18.25 282.02 0.3174 -1279.2 999999
17 2.53 -4.00 1.32 -4.00 9.48 54.91 18.14 282.85 0.3163 -1095.3 999999
18 0.00 1.31 0.00 0.69 11.76 54.79 18.02 289.90 0.3235 -883.0 -789.5
19 0.00 1.31 0.00 0.68 8.23 54.53 17.75 279.06 0.3070 -900.0 -736.1
20 3.93 -4.00 2.05 -4.00 10.51 54.52 17.75 286.32 0.3137 466.0 999999
21 0.00 1.48 0.00 0.78 11.62 54.53 17.75 289.72 0.3187 -881.0 -710.2
22 5.06 -4.00 2.64 -4.00 10.45 54.45 17.68 286.19 0.3124 -472.4 999999
23 45.40 -4.00 23.62 -4.00 9.52 54.27 17.50 283.38 0.3062 -1280.2 999999
24 1.66 -4.00 0.86 -4.00 10.37 54.10 17.33 286.21 0.3064 -966.7 999999
25 1.40 -4.00 0.73 -4.00 10.73 54.06 17.28 287.39 0.3072 -833.5 999999
26 3.06 -4.00 1.58 -4.00 8.73 53.76 16.99 281.06 0.2955 -944.2 999999
27 1.31 -4.00 0.68 -4.00 9.30 53.72 16.95 282.99 0.2966 -1092.7 999999
28 0.00 1.14 0.00 0.59 10.59 53.73 16.96 287.21 0.3015 -797.0 -727.3
29 0.00 1.57 0.00 0.82 10.41 53.66 16.88 286.69 0.2995 -927.0 -760.2
30 0.00 1.14 0.00 0.59 6.71 53.42 16.65 274.22 0.2866 -811.0 -580.7
31 0.00 0.52 0.00 0.27 7.45 53.39 16.62 276.84 0.2869 -558.0 -535.0
32 1.57 -4.00 0.81 -4.00 8.65 53.31 16.54 281.04 0.2881 -883.7 999999
33 1.22 -4.00 0.63 -4.00 9.40 53.22 16.45 283.67 0.2888 -1101.0 999999
34 0.00 1.75 0.00 0.90 9.76 53.21 16.44 284.90 0.2898 -1095.0 -901.9
35 0.00 5.94 0.00 3.07 10.10 53.16 16.39 286.05 0.2904 -1175.0 -951.0
36 0.00 4.54 0.00 2.35 10.49 53.09 16.32 287.42 0.2908 -773.0 -708.1
37 0.00 0.79 0.00 0.41 12.68 53.22 16.45 294.31 0.3045 683.0 482.4
38 5.50 8.82 2.85 4.57 11.00 53.05 16.28 289.15 0.2926 -1021.9 -834.9
39 0.00 0.52 0.00 0.27 11.25 52.81 16.04 290.20 0.2901 -470.0 -491.7
40 11.09 22.61 5.73 11.67 10.71 52.63 15.85 288.60 0.2845 -1231.8 -613.1
41 1.31 81.47 0.68 42.21 11.70 52.68 15.91 291.84 0.2905 -794.9 285.7
42 0.00 1.83 0.00 0.98 19.86 53.26 16.49 312.88 0.3658 -844.0 -631.1
43 1.75 -41.00 0.90 -41.00 12.24 52.59 15.82 293.70 0.2922 1003.5 999999
44 0.00 23.31 0.00 12.02 10.06 52.43 15.66 286.53 0.2785 -747.0 -776.8
45 0.00 2.62 0.00 1.35 11.77 52.50 15.72 292.26 0.2880 -258.0 -199.9
46 21.83 -41.00 11.30 -41.00 12.61 52.36 15.58 295.17 0.2910 1081.3 999999
47 0.00 0.96 0.00 0.49 8.00 52.06 15.29 279.33 0.2658 768.0 537.5
48 0.00 2.97 0.00 1.52 7.92 51.75 14.97 279.18 0.2604 941.0 633.0
49 0.00 3.14 0.00 1.62 11.36 51.78 15.00 291.76 0.2745 -878.0 -780.7
50 0.00 1.83 0.00 0.94 7.44 51.54 14.77 277.44 0.2561 866.0 787.0
51 0.00 0.96 0.00 0.49 8.01 51.50 14.73 279.67 0.2565 -971.0 -729.9
52 1.75 2.01 0.90 1.03 9.84 51.54 14.77 286.56 0.2633 -947.8 -984.0
53 0.00 1.66 0.00 0.85 7.45 51.32 14.55 277.54 0.2524 1136.0 979.6
54 0.00 1.22 0.00 0.63 7.63 51.30 14.53 278.27 0.2524 838.0 705.4
55 0.00 1.83 0.00 0.94 12.18 51.48 14.70 294.94 0.2748 -961.0 -655.0
56 0.00 4.19 0.00 2.15 11.04 51.35 14.58 291.15 0.2661 -885.0 -777.1
57 0.00 1.75 0.00 0.89 9.91 50.98 14.21 287.39 0.2546 -541.0 -284.0
58 0.00 9.87 0.00 5.06 10.87 50.97 14.19 291.00 0.2591 -747.0 -609.9
59 0.00 1.22 0.00 0.63 9.77 50.79 14.02 287.04 0.2508 -724.0 -525.6
60 0.00 4.80 0.00 2.46 12.54 50.33 13.56 297.89 0.2600 434.0 579.5
61 0.00 0.61 0.00 0.31 10.80 50.12 13.34 291.84 0.2453 730.0 587.6
62 0.00 1.92 0.00 0.98 10.44 50.07 13.30 290.51 0.2426 790.0 567.1
63 0.00 0.79 0.00 0.40 8.59 49.96 13.19 283.04 0.2327 701.0 608.7
64 0.00 2.62 0.00 1.34 10.63 49.86 13.09 291.52 0.2403 960.0 858.6
65 1.40 2.97 0.71 1.51 8.50 49.74 12.97 282.87 0.2288 972.4 832.1
66 0.00 1.48 0.00 0.76 11.23 49.85 13.08 293.85 0.2438 -965.0 -783.2
67 0.61 2.97 0.31 1.52 12.25 49.84 13.07 297.68 0.2506 979.0 752.1
68 0.00 2.10 0.00 1.08 16.09 50.00 13.23 309.63 0.2868 943.0 730.8
69 0.00 0.87 0.00 0.45 12.04 49.71 12.93 297.15 0.2471 906.0 725.8
70 0.00 1.05 0.00 0.53 10.63 49.64 12.87 291.84 0.2369 680.0 591.2
71 2.44 65.57 1.25 33.28 10.52 49.48 12.71 291.60 0.2337 892.5 387.1
72 0.00 1.14 0.00 0.58 12.50 49.45 12.67 299.27 0.2467 642.0 595.5
73 3.41 7.42 1.74 3.79 12.32 49.31 12.54 298.87 0.2433 988.9 693.8
74 0.00 2.27 0.00 1.15 9.89 49.14 12.37 289.49 0.2249 768.0 659.8
75 0.00 1.14 0.00 0.58 11.54 49.21 12.44 296.10 0.2361 -929.0 -646.2
76 8.91 -71.00 4.52 -71.00 10.35 48.82 12.05 291.90 0.2223 1021.6 999999
77 1.48 2.71 0.76 1.38 12.51 48.88 12.11 300.38 0.2385 837.4 576.7
78 0.00 1.05 0.00 0.54 13.45 48.93 12.16 303.63 0.2471 -875.0 -712.4
79 1.75 -71.00 0.89 -71.00 9.85 48.52 11.75 290.16 0.2147 926.9 999999
80 3.58 -71.00 1.82 -71.00 10.63 48.43 11.65 293.71 0.2178 -967.0 999999
81 0.00 1.14 0.00 0.57 9.19 48.31 11.54 287.48 0.2080 730.0 606.1
82 0.00 2.18 0.00 1.13 17.06 48.66 11.89 315.19 0.2808 867.0 709.3
83 0.00 1.22 0.00 0.62 12.25 48.37 11.60 300.42 0.2289 686.0 465.3
84 9.69 -71.00 4.91 -71.00 10.27 48.26 11.49 292.45 0.2130 1109.4 999999
85 0.00 1.22 0.00 0.62 7.67 48.17 11.40 280.30 0.2001 771.0 603.1
86 0.00 1.40 0.00 0.71 9.50 48.11 11.33 289.17 0.2062 908.0 692.9
87 0.96 201.70 0.49 102.24 12.59 48.01 11.24 302.48 0.2265 766.8 510.5
88 0.00 2.53 0.00 1.32 19.83 48.05 11.28 323.12 0.3079 1064.0 874.8
89 7.68 -87.00 3.89 -87.00 11.82 47.48 10.71 300.60 0.2122 1324.7 999999
90 0.79 -87.00 0.40 -87.00 11.19 47.46 10.68 297.98 0.2069 -543.9 999999
91 23.58 -87.00 11.95 -87.00 12.12 47.27 10.50 302.32 0.2118 1361.0 999999
92 0.79 -87.00 0.40 -87.00 11.70 47.07 10.30 301.06 0.2053 782.9 999999
93 1.75 2.01 0.88 1.01 10.99 46.98 10.21 298.10 0.1982 889.6 915.3
94 4.19 -87.00 2.12 -87.00 11.26 46.90 10.13 299.51 0.1991 933.8 999999
95 0.00 2.88 0.00 1.49 19.56 47.32 10.55 324.35 0.2973 593.0 660.0
96 0.00 1.48 0.00 0.77 21.02 47.03 10.26 327.90 0.3142 958.0 794.6
97 0.00 1.75 0.00 0.88 10.75 46.48 9.71 298.18 0.1888 1095.0 795.2
98 0.00 1.66 0.00 0.84 11.05 46.49 9.72 299.56 0.1914 1009.0 709.5
99 0.00 1.57 0.00 0.80 14.55 46.57 9.79 313.17 0.2268 837.0 631.9
100 0.00 3.49 0.00 1.76 11.57 46.29 9.52 302.40 0.1928 820.0 741.0
101 0.00 3.14 0.00 1.59 11.96 45.87 9.10 305.32 0.1905 1222.0 879.7
102 3.49 9.52 1.76 4.80 11.52 45.61 8.84 304.06 0.1826 1122.8 919.0
103 0.00 1.14 0.00 0.57 11.94 45.59 8.82 306.02 0.1864 1028.0 869.6
104 0.00 1.05 0.00 0.53 7.66 45.33 8.56 283.19 0.1521 838.0 606.9
105 0.00 1.05 0.00 0.53 12.27 45.45 8.68 307.91 0.1877 738.0 564.2
106 0.00 2.97 0.00 1.50 11.82 45.34 8.57 306.26 0.1818 979.0 815.3
107 0.00 1.75 0.00 0.88 11.43 45.21 8.44 304.88 0.1761 934.0 618.7
108 0.00 1.40 0.00 0.70 11.83 44.91 8.14 307.68 0.1759 1003.0 780.8
109 0.00 4.10 0.00 2.07 12.61 44.72 7.95 311.78 0.1818 806.0 618.6
110 11.87 13.80 5.95 6.91 10.16 44.31 7.54 301.06 0.1515 1104.9 778.3
111 0.00 1.48 0.00 0.76 18.29 44.28 7.50 330.38 0.2520 904.0 727.1
112 0.00 1.48 0.00 0.75 15.39 42.48 5.70 330.30 0.1943 803.0 536.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
