SDO HMI 2011-10-17 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.55 | 22.36 | 7.94 | 26.24 | 24.16 | 331.62 | -65.15 | 65.99 | 0.9071 | -244.9 | -290.3 | |
|
previous
or next observation for the same group /

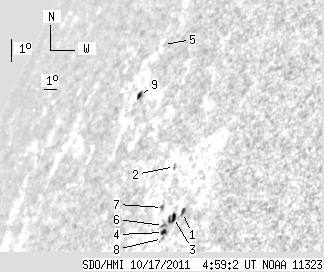

back to the solar disc SDO HMI 2011-10-17 04:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 2.94 | 23.44 | 333.84 | -62.93 | 66.57 | 0.8923 | -780.0 | -576.3 | |
| 0.00 | 1.92 | 0.00 | 2.23 | 24.77 | 332.02 | -64.75 | 65.28 | 0.9059 | -243.0 | -162.5 | |
| 2.36 | 5.94 | 2.60 | 6.57 | 23.23 | 333.36 | -63.41 | 66.85 | 0.8956 | -471.5 | -468.6 | |
| 2.01 | 2.53 | 2.24 | 2.82 | 22.73 | 333.06 | -63.71 | 67.44 | 0.8973 | -557.9 | -475.5 | |
| 0.00 | 0.96 | 0.00 | 1.37 | 28.32 | 326.74 | -70.03 | 61.89 | 0.9395 | 275.0 | 255.5 | |
| 0.00 | 2.18 | 0.00 | 2.45 | 22.94 | 332.88 | -63.89 | 67.23 | 0.8987 | -446.0 | -384.9 | |
| 0.00 | 1.66 | 0.00 | 1.90 | 23.47 | 332.33 | -64.44 | 66.69 | 0.9029 | -348.0 | -293.2 | |
| 0.00 | 1.14 | 0.00 | 1.26 | 22.54 | 333.15 | -63.63 | 67.64 | 0.8966 | -479.0 | -379.0 | |
| 2.18 | 3.32 | 3.10 | 4.70 | 26.63 | 326.80 | -69.97 | 63.69 | 0.9385 | 349.1 | 314.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
