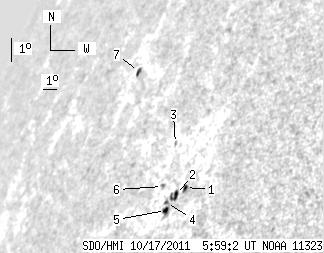

SDO HMI 2011-10-17 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.04 | 22.70 | 11.71 | 25.90 | 23.93 | 331.87 | -64.35 | 66.17 | 0.9016 | -264.3 | -302.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 05:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.48 | 2.44 | 1.59 | 2.61 | 23.52 | 333.87 | -62.35 | 66.42 | 0.8881 | -491.6 | -549.3 | |
| 2.88 | 6.46 | 3.12 | 7.01 | 23.25 | 333.45 | -62.77 | 66.76 | 0.8910 | -482.0 | -438.8 | |
| 0.00 | 1.40 | 0.00 | 1.59 | 24.78 | 332.01 | -64.22 | 65.21 | 0.9024 | -301.0 | -199.7 | |
| 0.00 | 2.62 | 0.00 | 2.87 | 22.96 | 332.98 | -63.24 | 67.14 | 0.8942 | -489.0 | -388.3 | |
| 2.97 | 4.28 | 3.24 | 4.67 | 22.71 | 333.11 | -63.11 | 67.40 | 0.8930 | -506.0 | -333.7 | |
| 0.00 | 1.83 | 0.00 | 2.06 | 23.41 | 332.29 | -63.93 | 66.70 | 0.8994 | -353.0 | -263.5 | |
| 2.71 | 3.67 | 3.76 | 5.09 | 26.67 | 326.69 | -69.53 | 63.62 | 0.9361 | 314.0 | 323.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
