SDO HMI 2011-10-17 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.80 | 621.66 | 60.92 | 333.37 | -12.31 | 48.94 | 13.26 | 215.72 | 0.3840 | -187.7 | -102.5 | |
|
previous
or next observation for the same group /

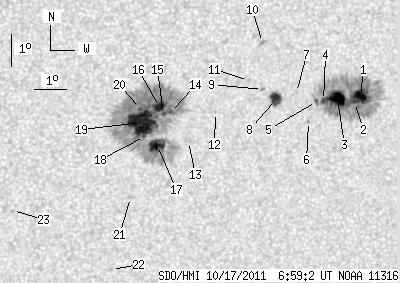

back to the solar disc SDO HMI 2011-10-17 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.87 | 222.82 | 5.38 | 121.32 | -11.80 | 53.25 | 17.58 | 224.89 | 0.4206 | 1238.3 | 403.6 | |
| 0.70 | -1.00 | 0.38 | -1.00 | -12.02 | 53.08 | 17.40 | 224.24 | 0.4210 | 914.0 | 999999 | |
| 17.20 | -1.00 | 9.35 | -1.00 | -11.87 | 52.52 | 16.84 | 223.56 | 0.4133 | 1360.4 | 999999 | |
| 2.62 | -1.00 | 1.42 | -1.00 | -11.92 | 52.08 | 16.40 | 222.71 | 0.4090 | 1062.2 | 999999 | |
| 1.14 | -1.00 | 0.61 | -1.00 | -11.95 | 51.86 | 16.18 | 222.28 | 0.4069 | 1060.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -12.57 | 51.64 | 15.96 | 220.87 | 0.4120 | 771.0 | 603.9 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -11.65 | 51.21 | 15.53 | 221.62 | 0.3964 | 895.0 | 723.7 | |
| 10.83 | 12.14 | 5.82 | 6.53 | -11.85 | 50.55 | 14.87 | 220.06 | 0.3920 | 1043.3 | 764.1 | |
| 0.00 | 1.57 | 0.00 | 0.84 | -11.52 | 50.12 | 14.45 | 219.79 | 0.3836 | 951.0 | 771.2 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -10.06 | 50.05 | 14.37 | 222.26 | 0.3650 | 1075.0 | 866.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -11.23 | 49.67 | 13.99 | 219.39 | 0.3753 | 844.0 | 715.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -12.21 | 48.68 | 13.00 | 215.75 | 0.3781 | 743.0 | 500.7 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -13.10 | 47.88 | 12.20 | 212.70 | 0.3827 | -502.0 | -448.4 | |
| 1.75 | 371.60 | 0.93 | 197.43 | -12.18 | 47.27 | 11.59 | 212.74 | 0.3648 | -844.4 | -447.7 | |
| 1.14 | -14.00 | 0.60 | -14.00 | -12.21 | 47.06 | 11.38 | 212.21 | 0.3633 | -804.5 | 999999 | |
| 8.82 | -14.00 | 4.68 | -14.00 | -11.98 | 46.92 | 11.24 | 212.24 | 0.3591 | -1310.6 | 999999 | |
| 15.54 | -14.00 | 8.30 | -14.00 | -13.21 | 46.91 | 11.24 | 210.45 | 0.3760 | -1002.1 | 999999 | |
| 1.14 | -14.00 | 0.60 | -14.00 | -12.92 | 46.49 | 10.82 | 209.91 | 0.3685 | -866.3 | 999999 | |
| 41.91 | -14.00 | 22.25 | -14.00 | -12.48 | 46.38 | 10.70 | 210.27 | 0.3613 | -1257.8 | 999999 | |
| 1.14 | -14.00 | 0.60 | -14.00 | -12.03 | 46.33 | 10.65 | 210.79 | 0.3547 | -1352.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -14.85 | 46.15 | 10.47 | 206.66 | 0.3931 | -680.0 | -596.0 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -17.15 | 45.67 | 9.99 | 203.16 | 0.4232 | -735.0 | -480.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | -15.20 | 42.47 | 6.79 | 197.74 | 0.3760 | -694.0 | -606.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
