SDO HMI 2011-10-17 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.87 | 55.61 | 20.30 | 54.31 | 20.23 | 95.15 | 59.47 | 290.16 | 0.8628 | 192.9 | -36.0 | |
|
previous
or next observation for the same group /

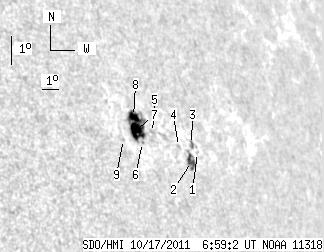

back to the solar disc SDO HMI 2011-10-17 06:59:02 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 1.00 | 19.51 | 97.56 | 61.88 | 289.11 | 0.8817 | -186.0 | -106.7 | |
| 6.37 | 11.26 | 6.52 | 11.53 | 19.28 | 97.00 | 61.32 | 288.89 | 0.8772 | -566.2 | -459.4 | |
| 0.00 | 3.32 | 0.00 | 3.44 | 19.78 | 97.33 | 61.65 | 289.43 | 0.8801 | -413.0 | -340.8 | |
| 0.00 | 1.22 | 0.00 | 1.24 | 19.80 | 96.47 | 60.80 | 289.52 | 0.8734 | -361.0 | -346.9 | |
| 0.00 | 2.36 | 0.00 | 2.30 | 20.35 | 95.15 | 59.47 | 290.28 | 0.8631 | -349.0 | -325.8 | |
| 0.00 | 0.96 | 0.00 | 0.92 | 20.10 | 94.37 | 58.69 | 290.07 | 0.8563 | 401.0 | 352.2 | |
| 9.52 | 34.31 | 9.03 | 32.75 | 20.49 | 94.18 | 58.50 | 290.55 | 0.8551 | 709.0 | 147.1 | |
| 4.98 | -7.00 | 4.75 | -7.00 | 20.92 | 94.33 | 58.65 | 291.04 | 0.8567 | 607.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 1.13 | 20.28 | 93.32 | 57.65 | 290.40 | 0.8475 | 386.0 | 367.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
