groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11319 251.08 1165.70 130.36 606.25 10.29 52.41 16.73 287.67 0.2995 -151.6 -151.0


previous   or   next   observation for the same group / back to the solar disc

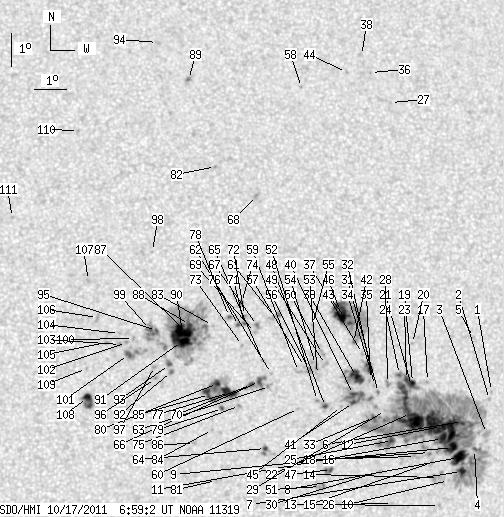

SDO HMI 2011-10-17 06:59:02 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.87 0.00 0.47 10.10 57.07 21.40 283.01 0.3702 -752.0 -576.3
2 0.00 1.31 0.00 0.70 9.86 56.99 21.31 282.41 0.3683 -730.0 -462.1
3 0.00 4.71 0.00 2.51 8.85 56.83 21.15 279.72 0.3633 132.0 73.7
4 1.22 586.04 0.65 308.33 8.39 56.41 20.74 278.56 0.3558 -649.5 -490.5
5 0.00 1.22 0.00 0.65 11.74 56.61 20.93 287.63 0.3686 713.0 439.9
6 0.44 -4.00 0.23 -4.00 9.24 56.08 20.40 281.08 0.3521 -892.2 999999
7 3.67 -4.00 1.94 -4.00 7.74 55.96 20.28 276.85 0.3475 -1104.2 999999
8 12.66 -4.00 6.68 -4.00 8.16 55.89 20.21 278.09 0.3469 -1092.3 999999
9 7.07 -4.00 3.73 -4.00 8.47 55.71 20.03 279.02 0.3446 -1198.7 999999
10 0.00 0.87 0.00 0.46 7.49 55.53 19.85 276.20 0.3402 -275.0 -288.9
11 4.71 -4.00 2.48 -4.00 8.75 55.40 19.73 279.94 0.3402 -1304.0 999999
12 42.00 -4.00 22.12 -4.00 9.11 55.39 19.71 281.00 0.3408 -1215.4 999999
13 0.00 0.87 0.00 0.46 6.75 55.21 19.53 274.06 0.3343 -816.0 -565.2
14 0.00 8.03 0.00 4.22 7.59 55.22 19.54 276.56 0.3352 -858.0 -644.1
15 0.00 2.79 0.00 1.47 8.04 55.01 19.34 277.98 0.3325 -807.0 -730.6
16 0.00 3.23 0.00 1.70 8.34 54.97 19.29 278.90 0.3323 -859.0 -800.9
17 0.00 0.96 0.00 0.51 10.47 55.03 19.35 285.15 0.3390 -745.0 -662.6
18 0.00 2.71 0.00 1.42 8.24 54.51 18.83 278.74 0.3247 -808.0 -750.0
19 2.44 -4.00 1.28 -4.00 10.46 54.54 18.86 285.42 0.3313 353.7 999999
20 0.00 0.96 0.00 0.51 11.62 54.62 18.94 288.76 0.3373 -927.0 -726.0
21 1.75 -4.00 0.92 -4.00 10.37 54.50 18.83 285.18 0.3303 -156.1 999999
22 39.99 -4.00 20.94 -4.00 9.53 54.42 18.74 282.72 0.3263 -1292.5 999999
23 2.62 -4.00 1.37 -4.00 10.55 54.36 18.68 285.83 0.3287 -690.4 999999
24 1.40 -4.00 0.73 -4.00 10.71 54.14 18.46 286.45 0.3259 -706.1 999999
25 2.36 -4.00 1.23 -4.00 8.74 53.80 18.13 280.58 0.3142 -900.5 999999
26 0.00 1.05 0.00 0.55 6.86 53.72 18.04 274.57 0.3099 -715.0 -508.1
27 0.00 0.79 0.00 0.42 18.94 54.59 18.91 307.33 0.3871 -968.0 -765.6
28 0.00 3.41 0.00 1.78 10.45 53.74 18.06 285.95 0.3185 -945.0 -754.8
29 0.00 1.22 0.00 0.64 9.64 53.63 17.95 283.52 0.3139 -258.0 -257.0
30 0.00 1.66 0.00 0.86 7.83 53.35 17.67 277.82 0.3049 -920.0 -758.2
31 0.00 1.40 0.00 0.73 10.19 53.44 17.76 285.36 0.3127 -1082.0 -916.8
32 0.00 1.05 0.00 0.55 10.40 53.32 17.64 286.11 0.3117 -817.0 -637.6
33 1.31 -4.00 0.68 -4.00 9.45 53.24 17.56 283.13 0.3069 -1168.3 999999
34 2.53 9.60 1.32 5.00 10.89 53.22 17.55 287.70 0.3121 -1067.1 -889.2
35 0.00 1.40 0.00 0.73 10.59 53.21 17.53 286.78 0.3106 -774.0 -625.1
36 0.00 0.96 0.00 0.52 19.89 54.03 18.35 310.10 0.3888 -764.0 -600.9
37 0.00 1.40 0.00 0.73 11.37 53.00 17.32 289.40 0.3108 -833.0 -602.9
38 0.00 0.79 0.00 0.42 20.42 53.79 18.11 311.55 0.3910 -641.0 -474.9
39 11.61 23.31 6.04 12.11 10.69 52.77 17.09 287.46 0.3040 -1191.1 -670.0
40 2.18 32.13 1.13 16.68 10.15 52.64 16.96 285.83 0.2998 -969.0 -731.8
41 2.18 -40.00 1.13 -40.00 9.91 52.63 16.95 285.06 0.2987 -1149.4 999999
42 1.05 84.34 0.55 43.95 11.71 52.73 17.05 290.70 0.3084 -756.6 291.6
43 1.75 -42.00 0.91 -42.00 12.29 52.64 16.96 292.56 0.3101 847.7 999999
44 0.00 1.05 0.00 0.56 19.91 53.23 17.55 311.33 0.3792 -737.0 -609.0
45 0.00 0.96 0.00 0.50 9.81 52.24 16.56 284.98 0.2921 -851.0 -543.2
46 20.69 -42.00 10.77 -42.00 12.66 52.38 16.70 293.98 0.3082 1085.3 999999
47 1.31 5.15 0.68 2.66 7.93 51.84 16.16 278.73 0.2802 797.0 752.8
48 1.48 3.75 0.77 1.94 9.82 51.74 16.06 285.42 0.2840 -1013.6 -615.3
49 0.00 2.79 0.00 1.45 11.08 51.80 16.13 289.60 0.2906 -862.0 -711.6
50 0.00 2.53 0.00 1.31 11.41 51.73 16.05 290.77 0.2911 -894.0 -694.1
51 0.00 5.41 0.00 2.79 7.43 51.48 15.80 277.06 0.2732 873.0 710.5
52 0.00 1.57 0.00 0.81 10.01 51.49 15.81 286.26 0.2808 -968.0 -733.4
53 0.00 1.48 0.00 0.77 10.78 51.53 15.86 288.89 0.2849 -835.0 -655.5
54 0.00 3.93 0.00 2.03 11.09 51.49 15.81 289.95 0.2857 -706.0 -766.8
55 0.00 0.79 0.00 0.41 12.29 51.46 15.78 293.93 0.2921 -756.0 -521.8
56 0.00 3.49 0.00 1.80 10.91 51.29 15.61 289.57 0.2817 -954.0 -829.5
57 0.00 1.31 0.00 0.68 11.03 51.14 15.46 290.15 0.2799 -797.0 -584.7
58 0.00 1.14 0.00 0.60 19.49 51.69 16.01 312.88 0.3565 -735.0 -576.5
59 0.00 2.27 0.00 1.17 10.89 50.94 15.26 289.87 0.2761 -496.0 -434.8
60 0.00 1.22 0.00 0.63 9.78 50.88 15.21 286.00 0.2701 -850.0 -514.0
61 0.00 5.24 0.00 2.70 12.56 50.27 14.60 296.40 0.2758 724.0 667.2
62 0.00 0.87 0.00 0.45 10.85 50.09 14.41 290.70 0.2624 641.0 504.4
63 0.00 3.41 0.00 1.75 10.46 50.01 14.33 289.38 0.2591 661.0 523.8
64 1.83 4.80 0.94 2.45 8.61 49.80 14.12 282.45 0.2482 891.6 808.3
65 0.00 0.96 0.00 0.49 11.28 49.83 14.15 292.58 0.2608 -892.0 -782.0
66 4.19 8.73 2.15 4.47 10.62 49.70 14.02 290.32 0.2551 898.8 722.7
67 0.00 3.06 0.00 1.57 12.30 49.72 14.04 296.34 0.2658 1032.0 792.1
68 0.00 3.06 0.00 1.59 16.23 49.94 14.26 308.05 0.3018 1002.0 779.1
69 0.00 0.79 0.00 0.40 12.09 49.65 13.97 295.73 0.2632 881.0 707.9
70 2.27 4.37 1.16 2.23 10.54 49.45 13.77 290.32 0.2506 1023.3 835.5
71 0.44 4.10 0.22 2.10 12.37 49.32 13.64 297.21 0.2602 1050.0 856.6
72 0.00 1.40 0.00 0.72 12.61 49.33 13.65 298.03 0.2621 673.0 585.9
73 0.00 0.96 0.00 0.49 11.71 49.22 13.54 295.01 0.2541 -807.0 -610.2
74 0.44 2.44 0.22 1.26 13.01 49.26 13.58 299.49 0.2640 -1033.2 -745.1
75 0.00 1.22 0.00 0.62 9.92 49.04 13.37 288.38 0.2410 768.0 630.2
76 1.22 -71.00 0.63 -71.00 12.32 49.13 13.45 297.33 0.2569 1054.0 999999
77 9.60 46.19 4.90 23.53 10.31 48.75 13.07 290.34 0.2384 1045.5 350.2
78 1.66 2.18 0.85 1.12 12.59 48.86 13.18 298.75 0.2549 853.2 704.2
79 1.31 1.75 0.67 0.89 9.84 48.51 12.83 288.71 0.2321 944.9 940.4
80 2.53 -77.00 1.29 -77.00 10.59 48.39 12.71 291.95 0.2342 -969.1 999999
81 0.00 1.22 0.00 0.62 7.69 48.25 12.57 279.62 0.2198 828.0 593.4
82 0.00 1.05 0.00 0.54 17.14 48.69 13.02 312.95 0.2953 901.0 769.2
83 0.00 1.14 0.00 0.58 12.33 48.31 12.63 298.79 0.2449 628.0 475.0
84 0.00 0.87 0.00 0.44 9.22 48.18 12.50 286.47 0.2238 765.0 591.6
85 6.11 -77.00 3.11 -77.00 10.27 48.12 12.45 291.00 0.2282 1177.7 999999
86 0.00 1.92 0.00 0.97 8.81 47.61 11.93 285.30 0.2127 934.0 645.9
87 2.01 162.14 1.02 82.55 11.93 47.70 12.02 298.39 0.2326 832.4 428.5
88 1.83 -87.00 0.93 -87.00 12.38 47.59 11.91 300.32 0.2346 841.9 999999
89 0.00 2.53 0.00 1.32 19.82 48.02 12.35 320.69 0.3189 1017.0 788.3
90 21.04 -87.00 10.71 -87.00 12.17 47.36 11.69 299.99 0.2296 1336.1 999999
91 13.53 -87.00 6.88 -87.00 11.87 47.32 11.64 298.91 0.2266 1399.1 999999
92 0.35 2.01 0.18 1.02 10.98 46.97 11.29 295.91 0.2147 887.8 749.9
93 1.83 4.54 0.93 2.30 11.19 46.92 11.24 296.91 0.2154 960.0 873.0
94 0.00 2.01 0.00 1.05 20.98 47.11 11.43 325.08 0.3246 905.0 735.3
95 1.22 26.63 0.62 13.51 12.22 46.56 10.88 301.90 0.2182 884.9 873.6
96 0.00 1.14 0.00 0.57 10.78 46.47 10.79 296.01 0.2056 1031.0 937.8
97 0.00 1.92 0.00 0.97 11.14 46.45 10.77 297.63 0.2079 947.0 816.1
98 0.00 0.87 0.00 0.45 14.60 46.54 10.86 310.54 0.2410 725.0 498.2
99 1.48 -95.00 0.75 -95.00 12.25 46.37 10.69 302.46 0.2158 1011.9 999999
100 0.00 1.57 0.00 0.80 11.99 45.83 10.15 302.68 0.2058 1013.0 850.1
101 3.49 15.02 1.77 7.59 11.51 45.66 9.98 301.06 0.1992 1129.6 850.6
102 0.00 1.48 0.00 0.75 11.87 45.61 9.93 302.74 0.2016 1153.0 847.8
103 0.00 1.22 0.00 0.62 11.82 45.42 9.74 302.98 0.1984 1078.0 906.1
104 0.00 1.48 0.00 0.75 12.15 45.40 9.72 304.43 0.2011 762.0 585.0
105 0.00 1.75 0.00 0.88 11.88 44.99 9.31 304.42 0.1929 949.0 758.7
106 0.00 3.49 0.00 1.76 12.64 44.74 9.06 308.35 0.1968 920.0 723.0
107 0.00 1.40 0.00 0.71 13.76 44.50 8.82 313.39 0.2060 859.0 705.3
108 4.28 11.53 2.15 5.79 10.24 44.35 8.68 298.27 0.1693 1164.3 1008.1
109 0.00 0.87 0.00 0.44 11.11 44.35 8.67 302.70 0.1766 821.0 616.6
110 0.00 1.40 0.00 0.72 18.32 44.39 8.71 326.72 0.2632 835.0 695.2
111 0.00 1.05 0.00 0.53 15.70 42.20 6.52 327.81 0.2062 738.0 480.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
