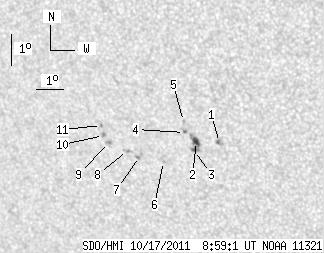

SDO HMI 2011-10-17 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.55 | 29.78 | 4.03 | 18.56 | -15.25 | 3.39 | -31.20 | 124.57 | 0.6089 | 146.9 | 44.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.97 | 0.00 | 1.81 | -15.14 | 5.26 | -29.33 | 126.01 | 0.5867 | 756.0 | 717.4 | |
| 4.19 | 11.70 | 2.58 | 7.21 | -15.15 | 4.44 | -30.15 | 125.29 | 0.5962 | 810.2 | 661.9 | |
| 1.66 | -2.00 | 1.02 | -2.00 | -15.44 | 4.32 | -30.27 | 125.60 | 0.5998 | 712.5 | 999999 | |
| 0.70 | 2.18 | 0.43 | 1.35 | -14.88 | 4.05 | -30.54 | 124.58 | 0.5987 | 575.2 | 433.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -14.53 | 4.07 | -30.52 | 124.09 | 0.5958 | 754.0 | 634.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -15.86 | 3.12 | -31.46 | 125.16 | 0.6164 | 271.0 | 270.2 | |
| 0.00 | 2.79 | 0.00 | 1.77 | -15.74 | 2.26 | -32.32 | 124.30 | 0.6252 | -418.0 | -488.0 | |
| 0.00 | 3.06 | 0.00 | 1.94 | -15.58 | 1.85 | -32.73 | 123.74 | 0.6286 | -714.0 | -649.1 | |
| 0.00 | 1.75 | 0.00 | 1.12 | -15.36 | 1.19 | -33.40 | 122.93 | 0.6347 | -826.0 | -617.3 | |
| 0.00 | 1.66 | 0.00 | 1.06 | -15.14 | 1.04 | -33.54 | 122.52 | 0.6349 | -766.0 | -668.3 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -14.83 | 1.02 | -33.56 | 122.07 | 0.6330 | -782.0 | -675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
