SDO HMI 2011-10-17 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.99 | 17.38 | 9.95 | 18.71 | 23.82 | 332.05 | -62.54 | 66.09 | 0.8887 | -264.4 | -454.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

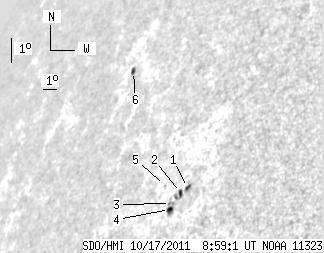

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.10 | 2.62 | 2.13 | 2.67 | 23.48 | 333.86 | -60.73 | 66.27 | 0.8760 | -554.5 | -500.3 | |
| 2.18 | 5.33 | 2.24 | 5.48 | 23.29 | 333.53 | -61.05 | 66.52 | 0.8783 | -474.4 | -495.4 | |
| 0.00 | 2.10 | 0.00 | 2.17 | 22.91 | 333.15 | -61.43 | 67.00 | 0.8808 | -504.0 | -468.1 | |
| 2.18 | 4.19 | 2.26 | 4.33 | 22.72 | 333.23 | -61.36 | 67.20 | 0.8801 | -483.9 | -554.1 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 23.42 | 332.33 | -62.26 | 66.52 | 0.8874 | -280.0 | -209.3 | |
| 2.53 | 2.88 | 3.32 | 3.78 | 26.63 | 326.61 | -67.98 | 63.53 | 0.9274 | 289.8 | 261.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
