SDO HMI 2011-10-17 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.98 | 605.57 | 55.63 | 347.52 | 27.39 | 56.14 | 22.10 | 318.42 | 0.5052 | -1090.5 | -377.8 | |
|
previous
or next observation for the same group /

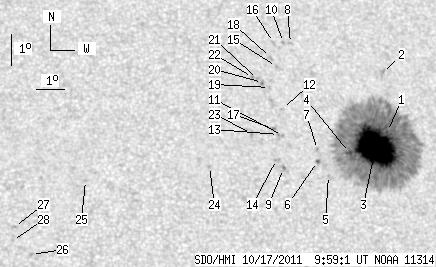

back to the solar disc SDO HMI 2011-10-17 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 570.07 | 0.35 | 327.44 | 27.83 | 56.94 | 22.90 | 318.10 | 0.5173 | -463.0 | -379.1 | |
| 0.00 | 3.23 | 0.00 | 1.90 | 29.75 | 57.20 | 23.16 | 320.50 | 0.5390 | 463.0 | 448.4 | |
| 93.05 | -1.00 | 53.40 | -1.00 | 27.33 | 56.39 | 22.35 | 317.99 | 0.5069 | -1403.2 | 999999 | |
| 2.27 | -1.00 | 1.29 | -1.00 | 27.21 | 55.42 | 21.38 | 318.96 | 0.4959 | -1148.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 26.50 | 54.53 | 20.49 | 319.01 | 0.4796 | -805.0 | -668.6 | |
| 1.05 | 1.31 | 0.59 | 0.74 | 26.96 | 54.22 | 20.18 | 320.10 | 0.4814 | -798.0 | -614.7 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 27.34 | 54.29 | 20.26 | 320.57 | 0.4862 | -734.0 | -620.0 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 30.81 | 54.02 | 19.98 | 325.64 | 0.5222 | -614.0 | -564.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 26.77 | 52.98 | 18.94 | 321.48 | 0.4673 | 394.0 | 482.4 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 30.86 | 53.77 | 19.73 | 326.01 | 0.5206 | -666.0 | -531.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 27.83 | 53.13 | 19.10 | 322.81 | 0.4806 | -924.0 | -732.5 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 28.70 | 53.30 | 19.26 | 323.81 | 0.4920 | -696.0 | -567.6 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 27.87 | 53.00 | 18.96 | 323.05 | 0.4798 | -908.0 | -751.1 | |
| 0.00 | 2.18 | 0.00 | 1.22 | 27.07 | 52.78 | 18.74 | 322.19 | 0.4687 | -784.0 | -725.4 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 30.08 | 53.35 | 19.31 | 325.56 | 0.5081 | -866.0 | -654.1 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 30.87 | 53.40 | 19.37 | 326.49 | 0.5176 | -640.0 | -478.1 | |
| 0.00 | 2.01 | 0.00 | 1.13 | 28.07 | 52.82 | 18.78 | 323.58 | 0.4804 | -855.0 | -744.9 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 30.38 | 53.19 | 19.15 | 326.15 | 0.5102 | -835.0 | -743.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 29.40 | 52.96 | 18.92 | 325.19 | 0.4970 | -754.0 | -600.2 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 29.57 | 52.74 | 18.70 | 325.71 | 0.4970 | -916.0 | -805.4 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 29.67 | 52.58 | 18.54 | 326.06 | 0.4969 | -784.0 | -716.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 29.74 | 52.41 | 18.37 | 326.38 | 0.4963 | -1004.0 | -856.9 | |
| 0.00 | 2.79 | 0.00 | 1.57 | 27.93 | 52.04 | 18.01 | 324.46 | 0.4718 | -935.0 | -722.0 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 26.91 | 50.40 | 16.36 | 325.47 | 0.4451 | -705.0 | -541.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 26.56 | 46.07 | 12.04 | 332.47 | 0.4052 | 802.0 | 584.4 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 24.24 | 44.04 | 10.00 | 333.61 | 0.3579 | 805.0 | 540.6 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 25.14 | 43.54 | 9.51 | 335.87 | 0.3673 | 790.0 | 648.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 24.70 | 43.44 | 9.40 | 335.55 | 0.3602 | 752.0 | 623.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
