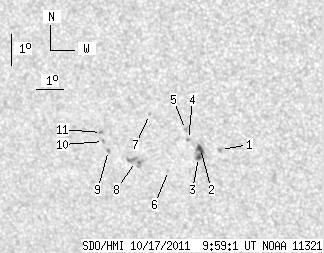

SDO HMI 2011-10-17 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.76 | 29.40 | 3.53 | 18.24 | -15.24 | 3.26 | -30.78 | 124.90 | 0.6040 | 123.5 | -106.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.27 | -15.11 | 5.25 | -28.79 | 126.47 | 0.5804 | 912.0 | 727.0 | |
| 3.58 | 9.78 | 2.19 | 5.99 | -15.12 | 4.54 | -29.50 | 125.82 | 0.5885 | 832.7 | 659.1 | |
| 2.18 | -2.00 | 1.34 | -2.00 | -15.41 | 4.42 | -29.62 | 126.13 | 0.5921 | 702.6 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.12 | -14.85 | 4.15 | -29.89 | 125.10 | 0.5909 | 664.0 | 588.2 | |
| 0.00 | 1.83 | 0.00 | 1.12 | -14.54 | 4.09 | -29.95 | 124.59 | 0.5892 | 688.0 | 578.6 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -15.89 | 3.26 | -30.77 | 125.78 | 0.6089 | 141.0 | 62.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -14.13 | 2.86 | -31.18 | 122.95 | 0.6005 | -443.0 | -374.5 | |
| 0.00 | 9.08 | 0.00 | 5.72 | -15.66 | 2.10 | -31.94 | 124.49 | 0.6203 | -797.0 | -652.2 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -15.36 | 1.16 | -32.88 | 123.33 | 0.6288 | -752.0 | -671.2 | |
| 0.00 | 1.22 | 0.00 | 0.78 | -15.09 | 1.02 | -33.01 | 122.84 | 0.6284 | -763.0 | -562.1 | |
| 0.00 | 1.48 | 0.00 | 0.94 | -14.80 | 1.00 | -33.04 | 122.43 | 0.6268 | -868.0 | -709.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
