SDO HMI 2011-10-17 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.96 | 612.98 | 54.64 | 352.73 | 27.40 | 56.04 | 22.55 | 317.96 | 0.5098 | -992.1 | -371.7 | |
|
previous
or next observation for the same group /

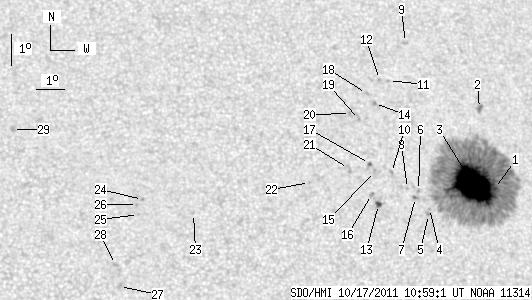

back to the solar disc SDO HMI 2011-10-17 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.83 | 566.76 | 1.06 | 326.67 | 27.18 | 57.12 | 23.63 | 316.32 | 0.5184 | -976.2 | -384.7 | |
| 0.00 | 3.49 | 0.00 | 2.06 | 29.78 | 57.18 | 23.69 | 319.97 | 0.5444 | 485.0 | 544.3 | |
| 89.11 | -1.00 | 51.32 | -1.00 | 27.34 | 56.39 | 22.90 | 317.38 | 0.5124 | -1385.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 26.62 | 54.65 | 21.16 | 318.37 | 0.4877 | -799.0 | -596.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 26.43 | 54.57 | 21.08 | 318.17 | 0.4850 | -981.0 | -834.4 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 27.21 | 54.37 | 20.88 | 319.60 | 0.4910 | -843.0 | -715.8 | |
| 0.00 | 1.92 | 0.00 | 1.09 | 26.99 | 54.22 | 20.73 | 319.46 | 0.4872 | -1029.0 | -841.4 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 27.29 | 53.99 | 20.50 | 320.20 | 0.4881 | -771.0 | -579.2 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 32.05 | 54.96 | 21.47 | 325.40 | 0.5484 | -635.0 | -523.6 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 27.82 | 53.51 | 20.02 | 321.58 | 0.4893 | -662.0 | -576.0 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 30.82 | 54.03 | 20.54 | 324.97 | 0.5270 | -644.0 | -502.3 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 30.86 | 53.70 | 20.21 | 325.42 | 0.5247 | -605.0 | -550.4 | |
| 2.97 | 3.93 | 1.67 | 2.20 | 26.81 | 52.86 | 19.37 | 320.96 | 0.4720 | 605.6 | 387.7 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 30.08 | 53.35 | 19.86 | 324.87 | 0.5129 | -868.0 | -717.2 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 27.87 | 52.91 | 19.42 | 322.44 | 0.4842 | -865.0 | -745.6 | |
| 0.00 | 1.83 | 0.00 | 1.03 | 27.14 | 52.67 | 19.18 | 321.70 | 0.4738 | -876.0 | -691.6 | |
| 1.05 | 2.79 | 0.59 | 1.58 | 28.14 | 52.78 | 19.29 | 322.99 | 0.4860 | -777.2 | -661.0 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 30.42 | 53.13 | 19.64 | 325.58 | 0.5148 | -699.0 | -640.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 29.58 | 52.70 | 19.21 | 325.05 | 0.5015 | -963.0 | -782.5 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 29.78 | 52.41 | 18.92 | 325.70 | 0.5014 | -925.0 | -766.3 | |
| 0.00 | 3.49 | 0.00 | 1.97 | 28.00 | 52.01 | 18.52 | 323.85 | 0.4773 | -423.0 | -610.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 27.59 | 50.55 | 17.06 | 325.37 | 0.4595 | -717.0 | -516.8 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 26.69 | 46.40 | 12.91 | 331.02 | 0.4136 | 569.0 | 473.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 27.17 | 44.70 | 11.21 | 334.80 | 0.4080 | 806.0 | 654.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 26.70 | 44.52 | 11.03 | 334.60 | 0.4000 | 745.0 | 649.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 27.02 | 44.51 | 11.02 | 334.98 | 0.4045 | 904.0 | 752.7 | |
| 0.00 | 2.44 | 0.00 | 1.30 | 24.42 | 43.67 | 10.18 | 333.46 | 0.3618 | 755.0 | 594.9 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 25.12 | 43.59 | 10.10 | 334.54 | 0.3712 | 812.0 | 569.2 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 29.51 | 40.43 | 6.94 | 345.41 | 0.4194 | 779.0 | 652.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
