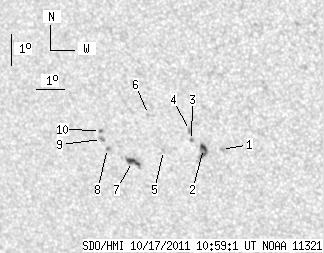

SDO HMI 2011-10-17 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.68 | 32.89 | 6.02 | 20.35 | -15.19 | 3.02 | -30.47 | 125.10 | 0.6000 | -95.0 | 138.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 10:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.95 | -15.13 | 5.23 | -28.26 | 126.98 | 0.5744 | 893.0 | 758.2 | |
| 3.05 | 9.60 | 1.86 | 5.84 | -15.13 | 4.59 | -28.90 | 126.38 | 0.5817 | 846.1 | 726.7 | |
| 0.00 | 1.57 | 0.00 | 0.96 | -14.89 | 4.20 | -29.29 | 125.69 | 0.5843 | 744.0 | 622.5 | |
| 0.00 | 2.18 | 0.00 | 1.33 | -14.57 | 4.18 | -29.31 | 125.21 | 0.5821 | 780.0 | 605.2 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -15.26 | 3.14 | -30.35 | 125.28 | 0.5992 | 514.0 | 384.8 | |
| 0.00 | 1.22 | 0.00 | 0.75 | -14.14 | 2.78 | -30.71 | 123.36 | 0.5951 | -505.0 | -386.9 | |
| 6.28 | 9.16 | 3.94 | 5.75 | -15.68 | 1.95 | -31.54 | 124.84 | 0.6158 | -775.0 | -599.2 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -15.31 | 1.10 | -32.39 | 123.64 | 0.6228 | -718.0 | -629.2 | |
| 0.00 | 3.05 | 0.00 | 1.93 | -15.03 | 0.93 | -32.56 | 123.12 | 0.6229 | -733.0 | -552.8 | |
| 0.35 | 1.57 | 0.22 | 0.99 | -14.75 | 0.94 | -32.55 | 122.73 | 0.6207 | -678.5 | -606.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
