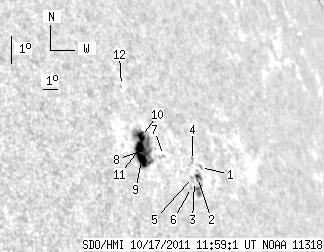

SDO HMI 2011-10-17 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.73 | 65.61 | 22.49 | 69.13 | 20.30 | 94.99 | 62.05 | 290.01 | 0.8834 | 250.9 | -161.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 1.99 | 19.76 | 97.60 | 64.66 | 289.21 | 0.9025 | -192.0 | -134.4 | |
| 2.88 | 11.69 | 3.24 | 13.10 | 19.48 | 97.17 | 64.23 | 288.93 | 0.8993 | -472.2 | -440.8 | |
| 0.00 | 0.87 | 0.00 | 0.97 | 19.38 | 96.88 | 63.94 | 288.83 | 0.8972 | -623.0 | -578.2 | |
| 0.00 | 2.09 | 0.00 | 2.36 | 20.02 | 97.20 | 64.26 | 289.52 | 0.8998 | -516.0 | -463.5 | |
| 0.00 | 0.96 | 0.00 | 1.07 | 19.51 | 96.83 | 63.89 | 288.98 | 0.8969 | -665.0 | -624.4 | |
| 0.00 | 1.13 | 0.00 | 1.25 | 19.22 | 96.55 | 63.60 | 288.68 | 0.8947 | -546.0 | -458.9 | |
| 0.00 | 1.13 | 0.00 | 1.20 | 20.33 | 95.36 | 62.42 | 290.01 | 0.8864 | 265.0 | 170.0 | |
| 0.52 | 45.29 | 0.54 | 46.47 | 20.61 | 94.32 | 61.38 | 290.41 | 0.8786 | -192.5 | -16.3 | |
| 8.38 | -8.00 | 8.51 | -8.00 | 20.33 | 93.87 | 60.93 | 290.13 | 0.8749 | 636.9 | 999999 | |
| 3.84 | -8.00 | 3.96 | -8.00 | 21.02 | 94.34 | 61.40 | 290.87 | 0.8791 | 439.5 | 999999 | |
| 6.11 | -8.00 | 6.24 | -8.00 | 20.70 | 94.05 | 61.11 | 290.53 | 0.8766 | 608.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.72 | 22.65 | 94.20 | 61.25 | 292.74 | 0.8793 | 349.0 | 269.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
