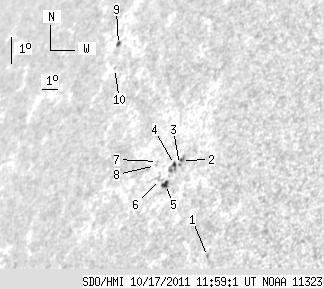

SDO HMI 2011-10-17 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.15 | 21.72 | 7.40 | 21.87 | 23.46 | 332.71 | -60.23 | 66.22 | 0.8712 | -317.3 | -368.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.16 | 20.73 | 337.26 | -55.68 | 68.79 | 0.8308 | -441.0 | -411.0 | |
| 1.22 | 2.36 | 1.19 | 2.29 | 23.51 | 333.92 | -59.03 | 66.00 | 0.8627 | -638.1 | -491.4 | |
| 0.00 | 1.05 | 0.00 | 1.02 | 23.38 | 333.88 | -59.06 | 66.15 | 0.8628 | -720.0 | -668.4 | |
| 1.22 | 6.02 | 1.20 | 5.91 | 23.36 | 333.58 | -59.36 | 66.22 | 0.8652 | -385.6 | -467.7 | |
| 3.23 | 4.01 | 3.17 | 3.94 | 22.71 | 333.47 | -59.47 | 66.98 | 0.8653 | -613.1 | -491.4 | |
| 0.00 | 3.05 | 0.00 | 3.04 | 22.83 | 333.06 | -59.88 | 66.89 | 0.8688 | -395.0 | -344.1 | |
| 0.00 | 0.87 | 0.00 | 0.88 | 23.36 | 332.47 | -60.48 | 66.37 | 0.8740 | -299.0 | -291.5 | |
| 0.00 | 0.70 | 0.00 | 0.71 | 23.23 | 332.43 | -60.51 | 66.52 | 0.8741 | -301.0 | -273.5 | |
| 1.48 | 1.83 | 1.84 | 2.28 | 26.65 | 326.46 | -66.49 | 63.37 | 0.9185 | 294.3 | 358.0 | |
| 0.00 | 0.52 | 0.00 | 0.64 | 25.90 | 326.97 | -65.98 | 64.14 | 0.9148 | 528.0 | 470.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
