SDO HMI 2011-10-17 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.42 | 60.04 | 24.07 | 65.66 | 20.19 | 95.10 | 63.26 | 289.80 | 0.8924 | 260.3 | -208.8 | |
|
previous
or next observation for the same group /

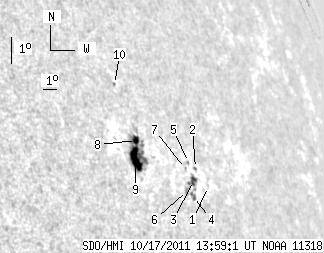

back to the solar disc SDO HMI 2011-10-17 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.95 | 19.19 | 98.28 | 66.44 | 288.49 | 0.9146 | -146.0 | -106.3 | |
| 0.00 | 1.40 | 0.00 | 1.66 | 19.80 | 97.75 | 65.90 | 289.19 | 0.9112 | -152.0 | -128.1 | |
| 4.01 | 8.29 | 4.71 | 9.69 | 19.46 | 97.32 | 65.47 | 288.84 | 0.9081 | -407.2 | -418.1 | |
| 0.00 | 3.49 | 0.00 | 4.04 | 18.99 | 96.96 | 65.11 | 288.34 | 0.9055 | -562.0 | -497.4 | |
| 0.00 | 1.31 | 0.00 | 1.54 | 20.02 | 97.38 | 65.53 | 289.45 | 0.9087 | -386.0 | -375.7 | |
| 0.00 | 3.58 | 0.00 | 4.10 | 19.21 | 96.67 | 64.82 | 288.59 | 0.9035 | -712.0 | -544.5 | |
| 0.00 | 1.22 | 0.00 | 1.42 | 19.87 | 97.02 | 65.18 | 289.30 | 0.9062 | -537.0 | -519.3 | |
| 3.58 | 38.91 | 3.81 | 41.14 | 20.99 | 94.30 | 62.46 | 290.74 | 0.8871 | 449.5 | -51.3 | |
| 14.83 | -8.00 | 15.55 | -8.00 | 20.46 | 93.85 | 62.00 | 290.18 | 0.8833 | 667.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.12 | 22.78 | 94.15 | 62.31 | 292.78 | 0.8873 | 408.0 | 345.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
