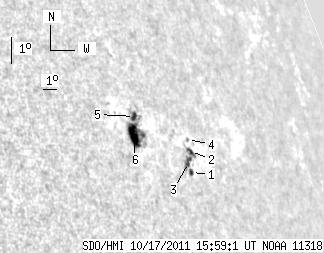

SDO HMI 2011-10-17 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.65 | 55.64 | 31.19 | 62.74 | 20.11 | 94.92 | 64.17 | 289.64 | 0.8990 | 159.5 | -140.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 16.13 | 2.62 | 19.51 | 18.95 | 96.98 | 66.23 | 288.24 | 0.9131 | -423.0 | -419.5 | |
| 2.62 | -1.00 | 3.20 | -1.00 | 19.57 | 97.40 | 66.66 | 288.91 | 0.9161 | -379.5 | 999999 | |
| 4.88 | -1.00 | 5.88 | -1.00 | 19.27 | 96.99 | 66.24 | 288.59 | 0.9133 | -598.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.28 | 19.95 | 97.47 | 66.73 | 289.31 | 0.9167 | -337.0 | -353.5 | |
| 2.97 | 38.46 | 3.26 | 41.95 | 20.96 | 94.23 | 63.49 | 290.62 | 0.8947 | 446.6 | -30.7 | |
| 15.00 | -5.00 | 16.23 | -5.00 | 20.40 | 93.74 | 63.00 | 290.04 | 0.8908 | 607.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
