SDO HMI 2011-10-17 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.62 | 18.84 | 4.46 | 17.79 | 23.50 | 332.78 | -57.96 | 65.86 | 0.8530 | -464.1 | -450.8 | |
|
previous
or next observation for the same group /

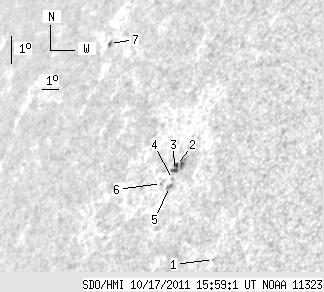

back to the solar disc SDO HMI 2011-10-17 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.81 | 20.71 | 337.31 | -53.43 | 68.46 | 0.8099 | -609.0 | -534.5 | |
| 1.57 | 10.55 | 1.45 | 9.73 | 23.40 | 333.62 | -57.12 | 65.84 | 0.8468 | -417.8 | -597.7 | |
| 2.27 | -2.00 | 2.10 | -2.00 | 23.24 | 333.61 | -57.13 | 66.03 | 0.8467 | -564.4 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.29 | 22.96 | 333.68 | -57.07 | 66.35 | 0.8458 | -588.0 | -493.0 | |
| 0.00 | 2.09 | 0.00 | 1.93 | 22.73 | 333.64 | -57.10 | 66.62 | 0.8458 | -776.0 | -593.6 | |
| 0.00 | 1.83 | 0.00 | 1.71 | 22.79 | 333.12 | -57.62 | 66.64 | 0.8502 | -416.0 | -377.9 | |
| 0.78 | 2.01 | 0.91 | 2.32 | 26.74 | 326.23 | -64.52 | 63.06 | 0.9060 | 279.3 | 382.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
