SDO HMI 2011-10-17 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.06 | 599.07 | 58.45 | 353.77 | 27.34 | 55.70 | 26.06 | 314.11 | 0.5453 | -987.9 | -399.5 | |
|
previous
or next observation for the same group /

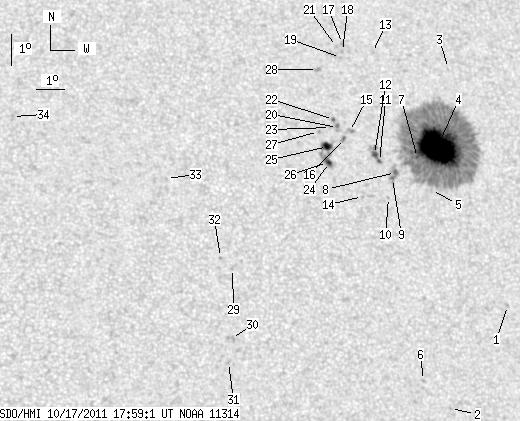

back to the solar disc SDO HMI 2011-10-17 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.91 | 22.29 | 57.59 | 27.95 | 304.33 | 0.5273 | -677.0 | -554.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 19.20 | 54.96 | 25.32 | 300.98 | 0.4730 | -790.0 | -597.5 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 29.90 | 57.34 | 27.70 | 316.17 | 0.5841 | 601.0 | 550.1 | |
| 80.92 | 511.32 | 47.95 | 303.26 | 27.40 | 56.22 | 26.58 | 313.66 | 0.5512 | -1471.4 | -404.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 26.01 | 55.65 | 26.01 | 312.11 | 0.5333 | -330.0 | -312.5 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 20.10 | 54.16 | 24.53 | 303.40 | 0.4689 | -618.0 | -434.1 | |
| 0.96 | -4.00 | 0.56 | -4.00 | 27.08 | 55.39 | 25.75 | 313.99 | 0.5397 | -1214.8 | 999999 | |
| 2.01 | 12.21 | 1.17 | 7.09 | 26.64 | 54.46 | 24.82 | 314.24 | 0.5260 | -993.4 | -758.5 | |
| 1.48 | -8.00 | 0.86 | -8.00 | 26.45 | 54.31 | 24.67 | 314.12 | 0.5226 | -968.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 25.85 | 54.03 | 24.39 | 313.48 | 0.5143 | -848.0 | -657.4 | |
| 1.22 | 11.68 | 0.71 | 6.79 | 27.01 | 53.96 | 24.32 | 315.33 | 0.5241 | -1022.1 | -775.0 | |
| 2.88 | -11.00 | 1.67 | -11.00 | 27.24 | 53.83 | 24.19 | 315.82 | 0.5249 | -1042.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 30.55 | 54.59 | 24.95 | 319.68 | 0.5637 | -578.0 | -489.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 25.92 | 53.10 | 23.46 | 314.59 | 0.5048 | 586.0 | 435.0 | |
| 0.00 | 4.36 | 0.00 | 2.53 | 28.01 | 53.09 | 23.45 | 317.76 | 0.5247 | -696.0 | -693.6 | |
| 1.13 | 2.27 | 0.66 | 1.31 | 27.80 | 52.85 | 23.21 | 317.70 | 0.5202 | -843.5 | -739.0 | |
| 0.00 | 2.01 | 0.00 | 1.19 | 30.88 | 53.54 | 23.90 | 321.22 | 0.5573 | -716.0 | -569.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 30.62 | 53.47 | 23.83 | 320.95 | 0.5541 | -774.0 | -579.4 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 30.43 | 53.34 | 23.70 | 320.83 | 0.5510 | -721.0 | -656.9 | |
| 0.00 | 4.80 | 0.00 | 2.78 | 28.16 | 52.68 | 23.04 | 318.42 | 0.5220 | -949.0 | -722.1 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 30.79 | 53.29 | 23.65 | 321.38 | 0.5541 | -719.0 | -518.6 | |
| 1.05 | 1.57 | 0.61 | 0.91 | 28.42 | 52.59 | 22.95 | 318.90 | 0.5238 | -658.1 | -654.3 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 28.17 | 52.42 | 22.78 | 318.73 | 0.5196 | -722.0 | -553.2 | |
| 1.83 | 22.24 | 1.05 | 12.78 | 27.05 | 52.14 | 22.50 | 317.40 | 0.5056 | 526.0 | -88.2 | |
| 4.53 | -24.00 | 2.61 | -24.00 | 27.56 | 52.18 | 22.54 | 318.12 | 0.5111 | 543.9 | 999999 | |
| 1.05 | -24.00 | 0.60 | -24.00 | 27.05 | 52.07 | 22.43 | 317.49 | 0.5049 | -189.8 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 28.05 | 51.96 | 22.32 | 319.10 | 0.5139 | -757.0 | -598.7 | |
| 0.00 | 2.62 | 0.00 | 1.54 | 30.07 | 52.39 | 22.75 | 321.40 | 0.5385 | -1010.0 | -818.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 23.80 | 48.13 | 18.50 | 317.38 | 0.4304 | 813.0 | 617.6 | |
| 0.00 | 3.14 | 0.00 | 1.70 | 21.62 | 47.80 | 18.16 | 313.91 | 0.4039 | 475.0 | 640.6 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 20.88 | 47.60 | 17.96 | 312.75 | 0.3941 | 865.0 | 651.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 24.16 | 47.77 | 18.13 | 318.51 | 0.4305 | 698.0 | 573.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 26.72 | 46.28 | 16.64 | 324.77 | 0.4454 | 613.0 | 447.9 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 28.83 | 41.20 | 11.56 | 336.01 | 0.4337 | 588.0 | 479.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
