group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11319	240.87	1052.92	129.84	569.98	10.09	52.80	23.16	282.98	0.3994	-104.5	-145.9

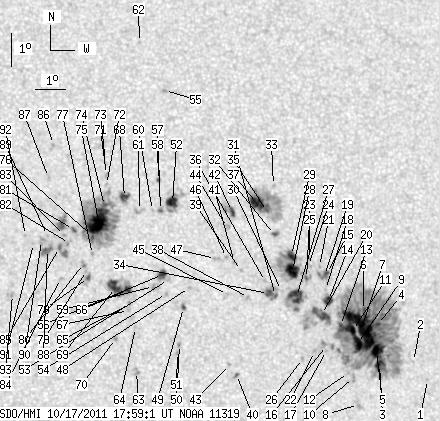

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-17 17:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.87	0.00	0.49	7.09	57.92	28.28	274.38	0.4734	750.0	600.5
2	0.00	1.05	0.00	0.59	7.65	57.48	27.84	275.61	0.4669	-573.0	-349.4
3	5.32	447.93	2.95	247.61	7.61	56.32	26.68	275.63	0.4491	-939.9	-430.2
4	1.74	-3.00	0.97	-3.00	8.81	56.34	26.70	278.29	0.4506	-675.3	999999
5	9.07	-3.00	5.02	-3.00	8.01	56.25	26.61	276.51	0.4482	-1128.3	999999
6	1.57	-3.00	0.87	-3.00	9.25	55.90	26.26	279.36	0.4445	-752.6	999999
7	42.99	-3.00	23.72	-3.00	8.75	55.79	26.15	278.25	0.4421	-1268.9	999999
8	0.00	5.32	0.00	2.93	6.45	55.54	25.90	273.03	0.4365	-897.0	-642.8
9	8.37	-3.00	4.61	-3.00	8.27	55.62	25.99	277.20	0.4389	-1447.1	999999
10	0.00	2.96	0.00	1.63	7.26	55.42	25.78	274.91	0.4349	-858.0	-717.4
11	3.58	-3.00	1.97	-3.00	8.67	55.48	25.85	278.13	0.4372	-1492.7	999999
12	0.00	1.40	0.00	0.77	7.42	55.27	25.63	275.29	0.4325	-809.0	-704.4
13	1.31	-3.00	0.72	-3.00	8.83	55.09	25.46	278.59	0.4313	-1139.0	999999
14	6.37	-3.00	3.48	-3.00	9.60	54.75	25.11	280.45	0.4273	-1045.7	999999
15	1.83	10.90	1.00	5.97	10.41	54.75	25.11	282.34	0.4291	281.1	-487.2
16	0.00	6.80	0.00	3.71	8.26	54.59	24.95	277.34	0.4226	-747.0	-899.0
17	0.00	1.22	0.00	0.67	8.11	54.58	24.94	276.99	0.4223	-796.0	-648.4
18	0.00	1.22	0.00	0.67	9.93	54.68	25.04	281.25	0.4269	-788.0	-551.1
19	1.05	-15.00	0.57	-15.00	10.35	54.68	25.04	282.23	0.4278	-261.4	999999
20	11.42	36.97	6.24	20.15	9.19	54.49	24.85	279.57	0.4224	-1067.4	-671.9
21	0.00	1.31	0.00	0.72	10.63	54.54	24.90	282.92	0.4263	-632.0	-438.9
22	0.00	1.57	0.00	0.85	8.09	54.18	24.54	277.02	0.4160	-807.0	-727.7
23	0.00	1.57	0.00	0.86	10.88	54.22	24.58	283.63	0.4222	-605.0	-493.9
24	0.00	2.62	0.00	1.43	10.67	54.17	24.53	283.17	0.4208	-621.0	-549.7
25	1.48	64.18	0.81	34.84	10.29	54.07	24.43	282.29	0.4183	-835.5	-586.1
26	0.00	1.48	0.00	0.80	7.90	53.77	24.13	276.62	0.4093	-943.0	-699.5
27	12.99	28.25	7.05	15.33	9.76	53.70	24.06	281.16	0.4113	-1175.7	-730.3
28	13.08	-25.00	7.10	-25.00	10.54	53.63	23.99	283.08	0.4121	-1321.1	999999
29	6.45	-25.00	3.51	-25.00	10.99	53.63	23.99	284.15	0.4134	-893.1	999999
30	0.00	1.05	0.00	0.57	9.96	53.22	23.58	281.82	0.4042	-639.0	-470.2
31	0.70	15.35	0.38	8.28	9.82	53.01	23.37	281.54	0.4006	-1082.6	-757.8
32	2.27	3.23	1.23	1.75	11.65	53.12	23.48	285.96	0.4077	-812.9	-288.8
33	0.00	1.66	0.00	0.90	13.12	53.23	23.59	289.38	0.4150	622.0	448.3
34	4.36	-31.00	2.35	-31.00	9.89	52.78	23.14	281.80	0.3972	-1108.8	999999
35	1.05	71.50	0.57	38.77	12.34	52.95	23.32	287.73	0.4077	757.1	280.9
36	0.00	1.66	0.00	0.89	10.25	52.71	23.07	282.73	0.3970	-715.0	-550.7
37	12.29	-35.00	6.65	-35.00	12.60	52.65	23.01	288.52	0.4040	1154.4	999999
38	0.00	1.74	0.00	0.94	9.79	52.12	22.48	281.81	0.3865	-1023.0	-782.0
39	0.00	1.48	0.00	0.80	10.61	51.95	22.31	283.97	0.3861	-800.0	-533.4
40	1.22	1.83	0.65	0.98	7.51	51.58	21.94	275.95	0.3741	764.4	758.7
41	0.00	1.57	0.00	0.84	10.86	51.74	22.10	284.71	0.3836	-818.0	-607.3
42	3.58	9.85	1.92	5.29	12.39	51.80	22.16	288.55	0.3902	-930.5	-610.3
43	0.00	1.31	0.00	0.70	7.81	51.37	21.73	276.82	0.3710	783.0	614.9
44	0.00	3.40	0.00	1.82	11.91	51.59	21.95	287.49	0.3852	-732.0	-621.2
45	0.00	1.13	0.00	0.61	9.91	51.44	21.80	282.39	0.3761	-763.0	-430.4
46	0.00	1.57	0.00	0.84	11.02	51.49	21.85	285.25	0.3802	-873.0	-658.1
47	0.00	2.70	0.00	1.44	11.00	51.12	21.48	285.41	0.3745	-940.0	-660.4
48	0.00	1.48	0.00	0.79	10.16	50.22	20.58	283.64	0.3576	602.0	351.8
49	1.48	2.53	0.78	1.34	9.57	49.98	20.34	282.11	0.3522	813.5	628.2
50	0.00	1.66	0.00	0.87	8.47	49.79	20.15	279.05	0.3466	849.0	681.4
51	0.00	1.48	0.00	0.78	8.23	49.71	20.07	278.39	0.3449	929.0	678.6
52	9.16	20.67	4.86	10.98	12.73	49.86	20.22	290.83	0.3623	948.8	443.3
53	0.00	1.31	0.00	0.69	10.42	49.55	19.92	284.74	0.3479	639.0	561.1
54	0.00	1.40	0.00	0.74	10.01	49.46	19.82	283.61	0.3451	820.0	672.2
55	0.00	1.74	0.00	0.93	16.11	49.92	20.28	299.27	0.3833	1063.0	842.2
56	6.19	7.41	3.27	3.91	10.58	49.37	19.73	285.29	0.3456	941.9	719.4
57	0.35	2.62	0.18	1.39	12.50	49.45	19.81	290.56	0.3549	975.8	769.5
58	1.40	1.57	0.74	0.83	13.40	49.46	19.82	292.96	0.3598	-676.2	-755.5
59	0.00	2.27	0.00	1.19	10.23	49.06	19.42	284.48	0.3394	930.0	747.0
60	0.00	0.78	0.00	0.41	12.51	49.19	19.55	290.80	0.3510	656.0	551.3
61	0.00	4.80	0.00	2.53	12.52	48.77	19.13	291.20	0.3446	371.0	586.2
62	0.00	1.05	0.00	0.56	17.60	49.25	19.61	303.49	0.3853	723.0	558.6
63	0.00	4.10	0.00	2.14	7.71	48.38	18.74	277.20	0.3223	501.0	687.0
64	0.00	0.96	0.00	0.50	9.02	48.41	18.77	281.23	0.3254	738.0	536.3
65	0.00	1.48	0.00	0.78	9.74	48.29	18.65	283.49	0.3256	1013.0	822.6
66	4.01	30.78	2.10	16.10	10.17	48.25	18.61	284.79	0.3264	909.3	488.8
67	0.00	1.13	0.00	0.59	9.54	48.21	18.58	282.91	0.3237	973.0	728.5
68	6.37	9.94	3.35	5.23	12.93	48.31	18.67	292.75	0.3399	873.9	579.2
69	13.43	-66.00	7.02	-66.00	10.24	47.84	18.20	285.28	0.3201	1057.5	999999
70	0.00	2.01	0.00	1.05	8.71	47.76	18.12	280.58	0.3141	905.0	786.7
71	0.00	2.01	0.00	1.05	13.64	47.79	18.15	295.26	0.3362	680.0	524.1
72	0.00	1.22	0.00	0.64	13.34	47.76	18.12	294.45	0.3340	688.0	440.6
73	0.00	0.87	0.00	0.46	14.00	47.78	18.15	296.26	0.3384	644.0	484.6
74	2.09	151.98	1.10	79.52	12.71	47.65	18.01	292.78	0.3286	837.1	423.1
75	35.14	-74.00	18.38	-74.00	12.23	47.42	17.79	291.63	0.3226	1237.7	999999
76	1.05	-74.00	0.55	-74.00	11.79	47.20	17.56	290.52	0.3168	896.2	999999
77	0.00	1.57	0.00	0.82	11.25	47.17	17.53	288.90	0.3136	746.0	648.2
78	2.01	3.14	1.04	1.63	10.56	47.00	17.36	286.91	0.3079	923.8	796.3
79	0.00	0.78	0.00	0.41	10.77	46.95	17.31	287.62	0.3080	856.0	823.7
80	0.00	2.53	0.00	1.32	10.99	46.86	17.23	288.36	0.3077	935.0	866.6
81	2.44	16.13	1.27	8.39	12.02	46.61	16.97	291.80	0.3088	884.1	886.1
82	0.00	2.18	0.00	1.13	11.60	46.46	16.82	290.67	0.3042	647.0	741.1
83	0.00	1.40	0.00	0.72	11.84	46.31	16.67	291.58	0.3033	924.0	748.1
84	0.00	1.22	0.00	0.63	10.56	46.11	16.47	287.65	0.2938	1036.0	832.4
85	1.66	6.54	0.86	3.39	11.49	46.13	16.49	290.64	0.2986	1059.9	915.1
86	0.00	0.96	0.00	0.50	14.59	46.15	16.51	299.95	0.3189	881.0	818.1
87	0.00	1.05	0.00	0.54	13.60	45.92	16.28	297.41	0.3083	726.0	625.9
88	0.00	8.72	0.00	4.51	11.44	45.75	16.11	290.89	0.2924	1216.0	1010.7
89	0.00	0.87	0.00	0.45	11.86	45.77	16.13	292.22	0.2951	897.0	779.1
90	0.00	4.27	0.00	2.21	11.71	45.57	15.93	291.97	0.2912	838.0	779.9
91	0.00	0.96	0.00	0.50	11.63	45.31	15.68	291.99	0.2867	882.0	700.1
92	0.00	0.87	0.00	0.45	11.88	45.08	15.44	293.09	0.2844	967.0	755.3
93	0.00	1.83	0.00	0.94	10.12	44.57	14.93	287.57	0.2673	1123.0	898.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
