SDO HMI 2011-10-17 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.55 | 92.09 | 61.80 | 261.87 | 10.83 | 309.01 | -80.63 | 79.98 | 0.9841 | -254.5 | 15.4 | |
|
previous
or next observation for the same group /

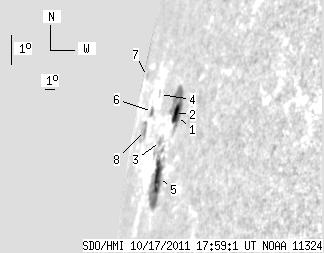

back to the solar disc SDO HMI 2011-10-17 17:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.06 | 31.22 | 11.99 | 75.28 | 11.84 | 310.85 | -78.79 | 79.08 | 0.9787 | -358.8 | -50.4 | |
| 2.27 | -1.00 | 5.53 | -1.00 | 11.92 | 310.43 | -79.21 | 78.97 | 0.9801 | 142.8 | 999999 | |
| 0.00 | 4.19 | 0.00 | 11.53 | 10.90 | 309.11 | -80.53 | 79.92 | 0.9846 | 187.0 | 126.8 | |
| 0.00 | 0.96 | 0.00 | 3.23 | 12.15 | 307.14 | -82.50 | 78.53 | 0.9897 | 120.0 | 113.4 | |
| 14.39 | 44.03 | 37.46 | 117.81 | 9.88 | 309.86 | -79.78 | 81.02 | 0.9825 | -413.5 | -53.2 | |
| 1.83 | 3.23 | 6.82 | 12.11 | 11.55 | 306.38 | -83.26 | 79.07 | 0.9915 | 213.1 | 114.4 | |
| 0.00 | 1.92 | 0.00 | 13.94 | 12.26 | 302.63 | -87.01 | 78.07 | 0.9977 | 308.0 | 301.5 | |
| 0.00 | 6.54 | 0.00 | 27.97 | 10.87 | 305.33 | -84.31 | 79.68 | 0.9938 | 187.0 | 129.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
