SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.25 | 607.05 | 64.74 | 360.14 | 27.36 | 55.64 | 26.55 | 313.71 | 0.5507 | -972.2 | -357.1 | |
|
previous
or next observation for the same group /

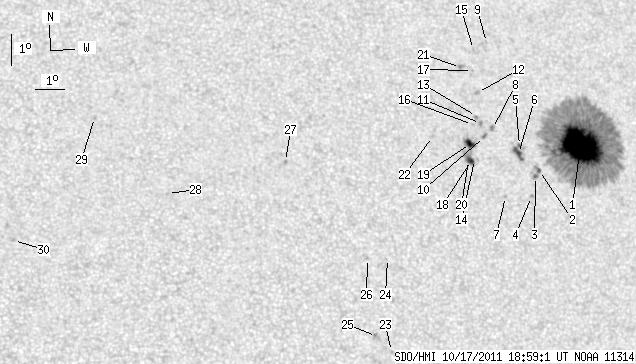

back to the solar disc SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.42 | 529.71 | 53.82 | 315.60 | 27.38 | 56.19 | 27.10 | 313.14 | 0.5565 | -1437.1 | -367.6 | |
| 1.48 | 8.72 | 0.87 | 5.09 | 26.65 | 54.47 | 25.38 | 313.69 | 0.5320 | -885.4 | -803.3 | |
| 1.22 | -2.00 | 0.71 | -2.00 | 26.46 | 54.28 | 25.19 | 313.60 | 0.5283 | -1020.6 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.96 | 25.83 | 53.98 | 24.90 | 312.93 | 0.5196 | -730.0 | -684.6 | |
| 1.22 | 11.07 | 0.71 | 6.46 | 27.47 | 53.93 | 24.84 | 315.48 | 0.5337 | -764.0 | -817.8 | |
| 6.45 | -5.00 | 3.76 | -5.00 | 27.22 | 53.83 | 24.74 | 315.21 | 0.5303 | -1029.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 25.87 | 53.04 | 23.96 | 313.97 | 0.5097 | 842.0 | 615.2 | |
| 0.00 | 2.44 | 0.00 | 1.42 | 28.06 | 53.06 | 23.98 | 317.25 | 0.5304 | -891.0 | -690.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 30.86 | 53.55 | 24.47 | 320.60 | 0.5623 | -714.0 | -543.9 | |
| 0.44 | 2.09 | 0.25 | 1.22 | 27.81 | 52.71 | 23.62 | 317.27 | 0.5245 | -1005.8 | -827.5 | |
| 0.00 | 1.57 | 0.00 | 0.91 | 28.23 | 52.66 | 23.57 | 317.94 | 0.5281 | -983.0 | -801.0 | |
| 0.00 | 2.44 | 0.00 | 1.43 | 29.24 | 52.79 | 23.71 | 319.22 | 0.5392 | -797.0 | -648.2 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 28.47 | 52.57 | 23.48 | 318.37 | 0.5294 | -846.0 | -723.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 27.09 | 52.18 | 23.09 | 316.79 | 0.5121 | 594.0 | 429.8 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 30.65 | 53.00 | 23.91 | 320.90 | 0.5551 | -813.0 | -639.2 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 28.21 | 52.36 | 23.27 | 318.24 | 0.5249 | -589.0 | -524.7 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 29.96 | 52.79 | 23.70 | 320.22 | 0.5463 | -682.0 | -627.0 | |
| 1.48 | 22.93 | 0.85 | 13.23 | 27.06 | 52.07 | 22.98 | 316.88 | 0.5106 | 457.4 | -150.3 | |
| 4.71 | -18.00 | 2.72 | -18.00 | 27.61 | 52.15 | 23.06 | 317.59 | 0.5168 | 576.3 | 999999 | |
| 1.83 | -18.00 | 1.05 | -18.00 | 27.06 | 51.96 | 22.87 | 317.01 | 0.5096 | -284.6 | 999999 | |
| 0.00 | 4.19 | 0.00 | 2.47 | 30.08 | 52.36 | 23.28 | 320.83 | 0.5435 | -900.0 | -684.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 27.88 | 50.82 | 21.73 | 319.54 | 0.5064 | -694.0 | -531.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 21.16 | 48.23 | 19.15 | 311.60 | 0.4108 | 734.0 | 641.5 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 24.06 | 48.52 | 19.43 | 316.49 | 0.4432 | 562.0 | 550.1 | |
| 0.00 | 3.66 | 0.00 | 1.99 | 21.64 | 47.79 | 18.70 | 313.15 | 0.4103 | 754.0 | 638.5 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 24.08 | 47.83 | 18.74 | 317.49 | 0.4360 | 699.0 | 529.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 27.24 | 45.46 | 16.37 | 325.93 | 0.4493 | 720.0 | 630.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 26.31 | 41.27 | 12.18 | 331.88 | 0.4030 | 786.0 | 581.7 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 28.80 | 39.01 | 9.93 | 339.00 | 0.4233 | 739.0 | 597.8 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 24.89 | 35.98 | 6.89 | 341.71 | 0.3484 | 736.0 | 571.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
