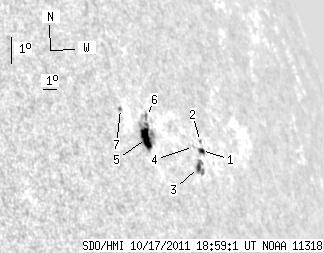

SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.05 | 45.34 | 23.84 | 53.99 | 20.03 | 94.86 | 65.78 | 289.47 | 0.9101 | 185.1 | -45.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 3.75 | 3.09 | 4.91 | 19.60 | 97.53 | 68.44 | 288.87 | 0.9275 | -415.2 | -472.4 | |
| 0.96 | 1.22 | 1.26 | 1.61 | 19.87 | 97.69 | 68.60 | 289.15 | 0.9285 | -286.0 | -313.0 | |
| 3.40 | 8.89 | 4.34 | 11.41 | 19.13 | 96.85 | 67.76 | 288.38 | 0.9232 | -599.9 | -426.2 | |
| 0.00 | 0.70 | 0.00 | 0.90 | 19.78 | 96.99 | 67.90 | 289.08 | 0.9242 | -475.0 | -456.5 | |
| 12.12 | 27.99 | 13.81 | 32.01 | 20.32 | 93.69 | 64.61 | 289.84 | 0.9024 | 611.3 | 134.2 | |
| 0.00 | 1.22 | 0.00 | 1.42 | 20.97 | 94.22 | 65.13 | 290.52 | 0.9064 | 453.0 | 268.2 | |
| 1.22 | 1.57 | 1.34 | 1.73 | 21.37 | 92.60 | 63.51 | 291.08 | 0.8952 | 455.1 | 496.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
