SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.35 | 42.38 | 10.31 | 25.23 | -15.04 | 2.51 | -26.58 | 128.61 | 0.5547 | -196.4 | -213.7 | |
|
previous
or next observation for the same group /

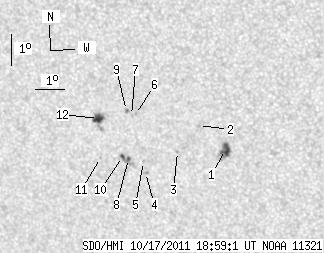

back to the solar disc SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.32 | 13.08 | 4.27 | 7.63 | -15.22 | 4.98 | -24.11 | 131.50 | 0.5284 | 902.6 | 699.2 | |
| 0.00 | 1.66 | 0.00 | 0.97 | -14.49 | 4.15 | -24.94 | 129.47 | 0.5310 | 811.0 | 665.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -15.35 | 3.32 | -25.77 | 129.84 | 0.5481 | 643.0 | 517.0 | |
| 0.00 | 1.74 | 0.00 | 1.05 | -16.08 | 2.11 | -26.98 | 129.61 | 0.5680 | -841.0 | -703.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -15.73 | 2.09 | -27.00 | 129.09 | 0.5652 | -874.0 | -704.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -14.24 | 2.02 | -27.07 | 126.84 | 0.5533 | -1071.0 | -849.5 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -14.28 | 1.87 | -27.21 | 126.75 | 0.5553 | -786.0 | -675.4 | |
| 1.31 | 8.55 | 0.79 | 5.15 | -15.66 | 1.58 | -27.51 | 128.47 | 0.5703 | -887.3 | -712.3 | |
| 0.35 | 1.22 | 0.21 | 0.73 | -14.12 | 1.72 | -27.37 | 126.38 | 0.5559 | -890.5 | -766.7 | |
| 1.66 | -8.00 | 1.00 | -8.00 | -15.61 | 1.37 | -27.71 | 128.19 | 0.5721 | -739.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -15.68 | 0.59 | -28.50 | 127.53 | 0.5815 | 518.0 | 431.2 | |
| 6.71 | 11.60 | 4.04 | 6.98 | -14.43 | 0.70 | -28.39 | 125.84 | 0.5702 | -824.9 | -627.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
