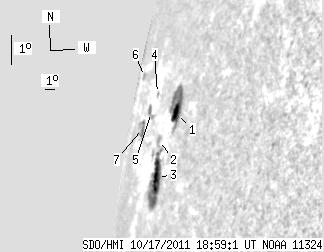

SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.71 | 96.18 | 52.71 | 261.10 | 10.92 | 308.95 | -80.13 | 79.92 | 0.9826 | -366.9 | 46.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.10 | 33.66 | 13.88 | 77.47 | 11.92 | 310.84 | -78.24 | 79.03 | 0.9767 | -371.1 | -52.0 | |
| 0.00 | 4.01 | 0.00 | 10.53 | 10.92 | 309.09 | -79.99 | 79.94 | 0.9829 | 157.0 | 130.9 | |
| 15.61 | 42.03 | 38.83 | 106.95 | 9.86 | 309.83 | -79.25 | 81.06 | 0.9807 | -444.8 | -38.5 | |
| 0.00 | 1.31 | 0.00 | 4.13 | 12.16 | 307.05 | -82.04 | 78.54 | 0.9885 | 242.0 | 121.7 | |
| 0.00 | 6.10 | 0.00 | 20.73 | 11.54 | 306.63 | -82.46 | 79.14 | 0.9897 | 334.0 | 245.4 | |
| 0.00 | 2.09 | 0.00 | 13.13 | 12.26 | 302.69 | -86.40 | 78.12 | 0.9970 | 337.0 | 333.3 | |
| 0.00 | 6.98 | 0.00 | 28.16 | 10.92 | 305.30 | -83.78 | 79.67 | 0.9928 | 178.0 | 154.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
