SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.42 | 602.64 | 63.92 | 359.10 | 27.34 | 55.57 | 27.04 | 313.21 | 0.5556 | -921.1 | -353.8 | |
|
previous
or next observation for the same group /

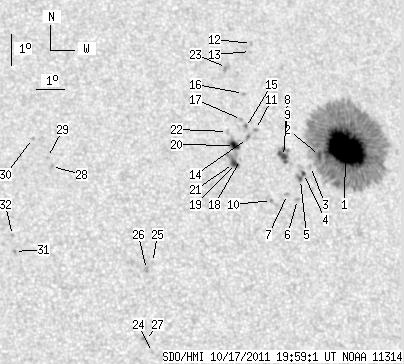

back to the solar disc SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.88 | 521.18 | 50.16 | 312.06 | 27.39 | 56.17 | 27.63 | 312.67 | 0.5622 | -1418.3 | -369.7 | |
| 3.05 | -1.00 | 1.81 | -1.00 | 27.21 | 55.14 | 26.60 | 313.35 | 0.5498 | -1114.3 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.18 | 26.87 | 54.71 | 26.18 | 313.25 | 0.5424 | -812.0 | -591.6 | |
| 1.48 | 5.76 | 0.87 | 3.37 | 26.66 | 54.40 | 25.87 | 313.23 | 0.5372 | -933.5 | -842.4 | |
| 1.66 | -4.00 | 0.97 | -4.00 | 26.47 | 54.24 | 25.71 | 313.10 | 0.5339 | -963.6 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 25.84 | 53.98 | 25.45 | 312.38 | 0.5257 | -850.0 | -779.4 | |
| 0.00 | 2.09 | 0.00 | 1.21 | 26.01 | 53.66 | 25.12 | 312.98 | 0.5236 | -693.0 | -586.1 | |
| 7.15 | 12.82 | 4.19 | 7.51 | 27.23 | 53.80 | 25.26 | 314.69 | 0.5359 | -1015.1 | -802.7 | |
| 1.22 | -8.00 | 0.72 | -8.00 | 27.48 | 53.86 | 25.32 | 315.01 | 0.5388 | -830.1 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.86 | 25.85 | 53.03 | 24.50 | 313.36 | 0.5154 | 715.0 | 548.8 | |
| 0.00 | 1.74 | 0.00 | 1.02 | 28.14 | 52.98 | 24.44 | 316.87 | 0.5358 | -782.0 | -691.7 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 30.94 | 53.56 | 25.02 | 320.13 | 0.5681 | -652.0 | -557.9 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 30.68 | 53.45 | 24.91 | 319.90 | 0.5646 | -701.0 | -549.8 | |
| 0.00 | 2.70 | 0.00 | 1.58 | 27.86 | 52.61 | 24.08 | 316.85 | 0.5295 | -915.0 | -625.6 | |
| 0.00 | 1.92 | 0.00 | 1.12 | 28.21 | 52.62 | 24.09 | 317.36 | 0.5330 | -952.0 | -777.9 | |
| 0.00 | 1.66 | 0.00 | 0.98 | 29.32 | 52.82 | 24.29 | 318.70 | 0.5455 | -796.0 | -673.3 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 28.48 | 52.54 | 24.00 | 317.82 | 0.5347 | -860.0 | -662.6 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 27.19 | 52.20 | 23.67 | 316.32 | 0.5190 | 610.0 | 490.6 | |
| 2.01 | 23.37 | 1.16 | 13.53 | 27.07 | 52.03 | 23.49 | 316.32 | 0.5160 | 447.5 | -180.0 | |
| 4.62 | -19.00 | 2.68 | -19.00 | 27.65 | 52.08 | 23.55 | 317.12 | 0.5222 | 553.8 | 999999 | |
| 2.35 | -19.00 | 1.36 | -19.00 | 27.08 | 51.92 | 23.38 | 316.45 | 0.5149 | -320.9 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.11 | 28.11 | 51.93 | 23.40 | 317.96 | 0.5251 | -772.0 | -484.9 | |
| 0.00 | 4.53 | 0.00 | 2.68 | 30.19 | 52.40 | 23.87 | 320.33 | 0.5501 | -931.0 | -725.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 21.24 | 48.03 | 19.50 | 311.28 | 0.4157 | 714.0 | 560.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 24.04 | 48.45 | 19.92 | 315.81 | 0.4482 | 675.0 | 532.1 | |
| 0.00 | 2.35 | 0.00 | 1.30 | 23.83 | 48.21 | 19.67 | 315.77 | 0.4434 | 751.0 | 675.3 | |
| 0.00 | 3.14 | 0.00 | 1.71 | 21.62 | 47.84 | 19.31 | 312.26 | 0.4172 | 746.0 | 681.9 | |
| 0.00 | 1.57 | 0.00 | 0.87 | 27.19 | 45.43 | 16.89 | 325.07 | 0.4533 | 628.0 | 515.0 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 27.48 | 45.33 | 16.80 | 325.63 | 0.4560 | 664.0 | 496.1 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 28.11 | 44.90 | 16.37 | 327.13 | 0.4599 | 659.0 | 540.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 24.52 | 43.77 | 15.24 | 323.72 | 0.4058 | 904.0 | 710.8 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 25.03 | 43.77 | 15.24 | 324.52 | 0.4120 | 780.0 | 629.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
