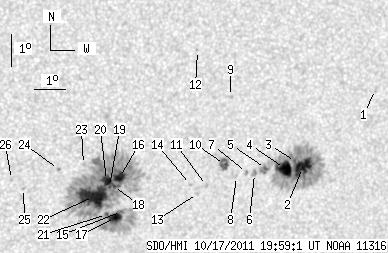

SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.60 | 549.25 | 57.76 | 305.97 | -12.30 | 48.81 | 20.27 | 227.84 | 0.4573 | -144.7 | -135.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.26 | -9.60 | 55.44 | 26.90 | 240.41 | 0.5151 | 589.0 | 469.1 | |
| 16.83 | 169.25 | 9.65 | 96.87 | -11.93 | 53.19 | 24.65 | 234.23 | 0.5050 | 1032.5 | 359.9 | |
| 1.57 | -2.00 | 0.90 | -2.00 | -11.73 | 52.93 | 24.40 | 234.28 | 0.5002 | 982.9 | 999999 | |
| 15.35 | -2.00 | 8.75 | -2.00 | -11.93 | 52.58 | 24.05 | 233.55 | 0.4977 | 1215.6 | 999999 | |
| 1.66 | -2.00 | 0.94 | -2.00 | -11.90 | 51.95 | 23.41 | 232.86 | 0.4897 | 1023.9 | 999999 | |
| 0.00 | 2.96 | 0.00 | 1.68 | -12.05 | 51.59 | 23.06 | 232.20 | 0.4867 | 887.0 | 744.6 | |
| 0.00 | 1.92 | 0.00 | 1.08 | -12.00 | 51.32 | 22.79 | 231.95 | 0.4831 | 900.0 | 735.5 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -12.12 | 51.00 | 22.47 | 231.37 | 0.4803 | 691.0 | 532.6 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -9.61 | 50.61 | 22.07 | 235.26 | 0.4528 | 524.0 | 483.2 | |
| 5.14 | 8.81 | 2.89 | 4.94 | -11.72 | 50.57 | 22.04 | 231.49 | 0.4715 | 992.8 | 811.3 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -12.36 | 50.04 | 21.50 | 229.73 | 0.4712 | 695.0 | 574.6 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -8.15 | 49.44 | 20.91 | 236.60 | 0.4250 | 762.0 | 634.6 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -12.60 | 49.76 | 21.23 | 228.97 | 0.4703 | 799.0 | 595.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -12.31 | 49.51 | 20.97 | 229.11 | 0.4645 | 528.0 | 460.4 | |
| 0.35 | 352.36 | 0.19 | 193.64 | -13.08 | 47.32 | 18.79 | 224.71 | 0.4477 | -766.5 | -424.3 | |
| 8.28 | -15.00 | 4.55 | -15.00 | -12.01 | 47.18 | 18.64 | 226.27 | 0.4345 | -1146.5 | 999999 | |
| 7.85 | -15.00 | 4.34 | -15.00 | -13.27 | 47.14 | 18.61 | 224.14 | 0.4478 | -1048.5 | 999999 | |
| 1.22 | -15.00 | 0.67 | -15.00 | -12.29 | 47.00 | 18.47 | 225.53 | 0.4355 | -879.4 | 999999 | |
| 1.05 | -15.00 | 0.57 | -15.00 | -12.28 | 46.87 | 18.34 | 225.34 | 0.4341 | -1004.0 | 999999 | |
| 6.45 | -15.00 | 3.54 | -15.00 | -12.09 | 46.76 | 18.23 | 225.49 | 0.4307 | -1393.1 | 999999 | |
| 1.31 | -15.00 | 0.72 | -15.00 | -13.16 | 46.84 | 18.31 | 223.85 | 0.4434 | -932.7 | 999999 | |
| 36.54 | -15.00 | 20.05 | -15.00 | -12.58 | 46.38 | 17.85 | 224.06 | 0.4319 | -1172.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -11.57 | 45.99 | 17.46 | 225.15 | 0.4163 | -306.0 | -151.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -11.70 | 45.20 | 16.67 | 223.60 | 0.4090 | 713.0 | 531.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -12.26 | 44.12 | 15.59 | 220.74 | 0.4041 | -706.0 | -564.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -11.97 | 43.73 | 15.19 | 220.50 | 0.3964 | -820.0 | -681.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
