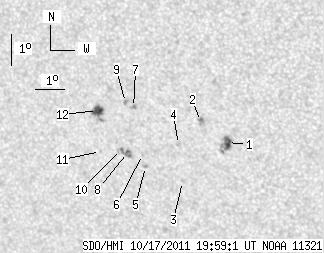

SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.31 | 49.53 | 9.64 | 29.32 | -15.06 | 2.55 | -25.99 | 129.25 | 0.5482 | -125.8 | -145.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.63 | 12.29 | 3.84 | 7.14 | -15.23 | 5.03 | -23.50 | 132.23 | 0.5217 | 946.4 | 656.1 | |
| 0.00 | 4.36 | 0.00 | 2.53 | -14.59 | 4.19 | -24.34 | 130.30 | 0.5251 | 825.0 | 719.5 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -16.55 | 3.33 | -25.21 | 132.15 | 0.5529 | 764.0 | 492.2 | |
| 0.00 | 1.92 | 0.00 | 1.13 | -15.36 | 3.35 | -25.19 | 130.49 | 0.5417 | 483.0 | 372.0 | |
| 0.00 | 2.27 | 0.00 | 1.36 | -16.12 | 2.11 | -26.43 | 130.24 | 0.5623 | -918.0 | -705.5 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -15.74 | 2.06 | -26.48 | 129.64 | 0.5595 | -732.0 | -642.4 | |
| 0.00 | 2.18 | 0.00 | 1.29 | -14.25 | 1.95 | -26.59 | 127.34 | 0.5478 | -1029.0 | -846.7 | |
| 1.31 | 8.72 | 0.78 | 5.23 | -15.70 | 1.54 | -26.99 | 129.05 | 0.5649 | -912.6 | -691.1 | |
| 0.00 | 1.83 | 0.00 | 1.08 | -14.10 | 1.69 | -26.85 | 126.86 | 0.5496 | -946.0 | -831.2 | |
| 1.05 | -8.00 | 0.63 | -8.00 | -15.61 | 1.34 | -27.19 | 128.73 | 0.5663 | -761.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -15.71 | 0.59 | -27.94 | 128.12 | 0.5756 | 596.0 | 437.2 | |
| 7.32 | 12.47 | 4.39 | 7.47 | -14.40 | 0.68 | -27.86 | 126.31 | 0.5639 | -844.1 | -618.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
