SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.93 | 107.86 | 48.77 | 283.03 | 10.91 | 308.69 | -79.85 | 79.95 | 0.9816 | -371.0 | 49.2 | |
|
previous
or next observation for the same group /

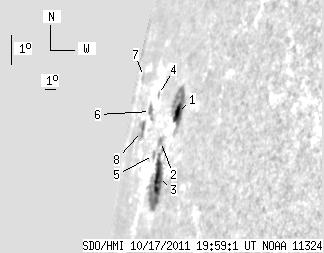

back to the solar disc SDO HMI 2011-10-17 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.23 | 34.97 | 11.43 | 77.05 | 11.96 | 310.70 | -77.84 | 79.01 | 0.9752 | -384.1 | -87.4 | |
| 0.00 | 4.53 | 0.00 | 11.37 | 10.91 | 309.07 | -79.46 | 79.98 | 0.9812 | 186.0 | 137.8 | |
| 15.70 | 45.78 | 37.34 | 111.69 | 9.85 | 309.77 | -78.76 | 81.11 | 0.9790 | -466.5 | -25.0 | |
| 0.00 | 1.92 | 0.00 | 5.70 | 12.16 | 307.14 | -81.39 | 78.59 | 0.9868 | 152.0 | 78.8 | |
| 0.00 | 2.70 | 0.00 | 7.19 | 10.41 | 308.37 | -80.17 | 80.44 | 0.9836 | 197.0 | 197.0 | |
| 0.00 | 6.10 | 0.00 | 19.85 | 11.56 | 306.28 | -82.26 | 79.14 | 0.9892 | 390.0 | 291.1 | |
| 0.00 | 3.05 | 0.00 | 17.19 | 12.27 | 302.57 | -85.96 | 78.15 | 0.9964 | 391.0 | 319.5 | |
| 0.00 | 8.81 | 0.00 | 32.99 | 10.84 | 305.17 | -83.37 | 79.79 | 0.9919 | 170.0 | 134.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
