SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.22 | 587.67 | 65.98 | 351.71 | 27.38 | 55.55 | 27.57 | 312.79 | 0.5616 | -878.2 | -366.2 | |
|
previous
or next observation for the same group /

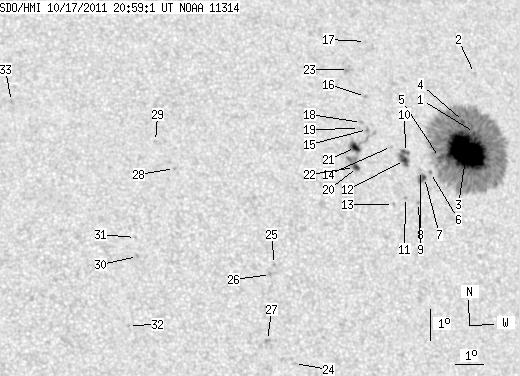

back to the solar disc SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.87 | 502.98 | 0.53 | 302.50 | 27.99 | 56.63 | 28.64 | 312.66 | 0.5778 | -500.9 | -377.2 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 29.90 | 57.21 | 29.23 | 314.83 | 0.5992 | 560.0 | 429.5 | |
| 89.03 | -1.00 | 53.50 | -1.00 | 27.40 | 56.15 | 28.17 | 312.21 | 0.5680 | -1344.0 | 999999 | |
| 1.40 | -1.00 | 0.84 | -1.00 | 28.36 | 56.31 | 28.33 | 313.47 | 0.5775 | -415.9 | 999999 | |
| 0.78 | -1.00 | 0.47 | -1.00 | 27.25 | 55.08 | 27.10 | 312.95 | 0.5555 | -1087.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 26.79 | 54.62 | 26.64 | 312.68 | 0.5467 | -907.0 | -769.6 | |
| 1.74 | 6.19 | 1.03 | 3.64 | 26.64 | 54.36 | 26.38 | 312.70 | 0.5426 | -927.3 | -867.6 | |
| 0.00 | 1.74 | 0.00 | 1.03 | 26.87 | 54.27 | 26.29 | 313.14 | 0.5436 | -655.0 | -636.0 | |
| 0.00 | 1.22 | 0.00 | 0.71 | 25.85 | 53.95 | 25.97 | 311.90 | 0.5315 | -836.0 | -745.8 | |
| 2.88 | 12.91 | 1.70 | 7.60 | 27.46 | 53.86 | 25.88 | 314.43 | 0.5444 | -817.7 | -852.6 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 26.03 | 53.51 | 25.53 | 312.60 | 0.5282 | -794.0 | -633.5 | |
| 6.63 | -10.00 | 3.90 | -10.00 | 27.21 | 53.76 | 25.78 | 314.15 | 0.5411 | -1028.9 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 25.82 | 53.02 | 25.04 | 312.77 | 0.5211 | 640.0 | 520.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | 27.68 | 53.39 | 25.41 | 315.21 | 0.5414 | -710.0 | -529.8 | |
| 0.00 | 2.09 | 0.00 | 1.23 | 28.26 | 52.64 | 24.66 | 316.82 | 0.5391 | -989.0 | -847.8 | |
| 0.00 | 1.31 | 0.00 | 0.78 | 29.33 | 52.84 | 24.85 | 318.13 | 0.5511 | -823.0 | -651.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 31.13 | 53.33 | 25.35 | 320.05 | 0.5729 | -503.0 | -425.4 | |
| 0.00 | 1.92 | 0.00 | 1.13 | 28.49 | 52.47 | 24.49 | 317.33 | 0.5397 | -752.0 | -495.3 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 28.30 | 52.35 | 24.37 | 317.18 | 0.5366 | -701.0 | -518.2 | |
| 2.01 | 32.18 | 1.16 | 18.73 | 27.05 | 51.98 | 24.00 | 315.74 | 0.5211 | 342.7 | -339.1 | |
| 3.92 | -20.00 | 2.29 | -20.00 | 27.70 | 52.06 | 24.07 | 316.62 | 0.5279 | 600.9 | 999999 | |
| 0.96 | -20.00 | 0.56 | -20.00 | 27.06 | 51.87 | 23.89 | 315.87 | 0.5200 | -224.8 | 999999 | |
| 0.00 | 4.53 | 0.00 | 2.70 | 30.23 | 52.43 | 24.45 | 319.78 | 0.5559 | -909.0 | -712.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 20.98 | 48.63 | 20.65 | 309.30 | 0.4273 | 543.0 | 440.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 24.09 | 48.43 | 20.44 | 315.20 | 0.4545 | 772.0 | 617.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 23.78 | 48.24 | 20.25 | 314.92 | 0.4493 | 881.0 | 755.8 | |
| 0.00 | 2.70 | 0.00 | 1.48 | 21.72 | 47.82 | 19.84 | 311.76 | 0.4244 | 778.0 | 644.7 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 27.24 | 45.44 | 17.46 | 324.29 | 0.4590 | 709.0 | 585.4 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 28.12 | 44.92 | 16.93 | 326.31 | 0.4650 | 639.0 | 486.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 24.48 | 43.76 | 15.78 | 322.74 | 0.4104 | 850.0 | 745.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 25.08 | 43.77 | 15.79 | 323.68 | 0.4178 | 630.0 | 470.5 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 22.32 | 43.20 | 15.21 | 320.00 | 0.3793 | 652.0 | 454.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 29.54 | 40.04 | 12.06 | 335.88 | 0.4468 | 736.0 | 588.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
