SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.91 | 48.32 | 15.93 | 60.58 | 20.00 | 95.22 | 67.24 | 289.36 | 0.9197 | 260.2 | -95.6 | |
|
previous
or next observation for the same group /

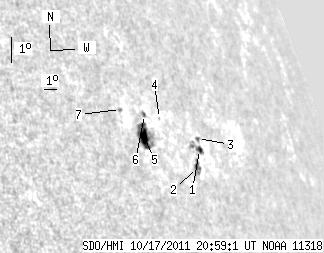

back to the solar disc SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.79 | 8.81 | 3.85 | 12.04 | 19.58 | 97.66 | 69.68 | 288.81 | 0.9349 | -358.1 | -432.6 | |
| 0.00 | 7.76 | 0.00 | 10.43 | 19.08 | 97.00 | 69.02 | 288.29 | 0.9309 | -638.0 | -472.3 | |
| 0.44 | 1.92 | 0.61 | 2.67 | 19.92 | 97.80 | 69.82 | 289.17 | 0.9358 | -356.0 | -299.9 | |
| 0.00 | 0.70 | 0.00 | 0.88 | 20.78 | 95.27 | 67.29 | 290.19 | 0.9206 | 109.0 | 54.8 | |
| 8.37 | 25.90 | 9.89 | 30.77 | 20.32 | 93.66 | 65.68 | 289.77 | 0.9098 | 619.0 | 182.3 | |
| 1.31 | 1.66 | 1.58 | 2.00 | 21.00 | 94.24 | 66.26 | 290.48 | 0.9140 | 230.5 | 176.2 | |
| 0.00 | 1.57 | 0.00 | 1.79 | 21.30 | 92.63 | 64.64 | 290.92 | 0.9032 | 563.0 | 496.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
