SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.58 | 49.44 | 12.10 | 29.04 | -14.97 | 2.75 | -25.23 | 129.94 | 0.5390 | -95.8 | 27.2 | |
|
previous
or next observation for the same group /

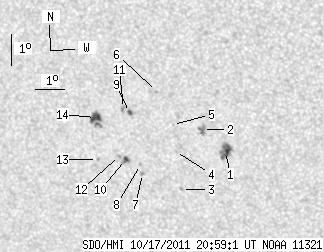

back to the solar disc SDO HMI 2011-10-17 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.37 | 13.08 | 4.84 | 7.56 | -15.30 | 5.01 | -22.97 | 132.98 | 0.5167 | 909.5 | 763.6 | |
| 0.00 | 5.93 | 0.00 | 3.43 | -14.63 | 4.31 | -23.67 | 131.14 | 0.5179 | 1006.0 | 754.8 | |
| 0.00 | 1.83 | 0.00 | 1.08 | -16.59 | 3.35 | -24.63 | 132.86 | 0.5471 | 714.0 | 491.4 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -15.37 | 3.30 | -24.68 | 131.07 | 0.5361 | 717.0 | 509.6 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -14.51 | 3.31 | -24.67 | 129.80 | 0.5281 | 520.0 | 338.7 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -13.49 | 2.88 | -25.10 | 127.76 | 0.5238 | -508.0 | -459.3 | |
| 0.00 | 1.83 | 0.00 | 1.09 | -16.13 | 2.07 | -25.91 | 130.80 | 0.5567 | -834.0 | -705.0 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -15.84 | 2.04 | -25.94 | 130.36 | 0.5544 | -770.0 | -676.8 | |
| 1.83 | 2.18 | 1.08 | 1.28 | -14.19 | 1.88 | -26.10 | 127.77 | 0.5417 | -959.4 | -884.5 | |
| 2.53 | 4.01 | 1.51 | 2.39 | -15.71 | 1.54 | -26.44 | 129.63 | 0.5588 | -964.6 | -775.6 | |
| 0.00 | 2.53 | 0.00 | 1.49 | -14.08 | 1.69 | -26.30 | 127.39 | 0.5430 | -913.0 | -789.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -15.59 | 1.35 | -26.63 | 129.26 | 0.5598 | -604.0 | -581.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -15.75 | 0.56 | -27.42 | 128.69 | 0.5701 | 671.0 | 530.8 | |
| 7.85 | 12.03 | 4.67 | 7.17 | -14.41 | 0.68 | -27.31 | 126.86 | 0.5575 | -861.8 | -670.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
