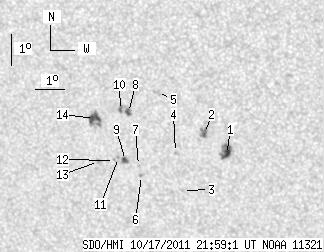

SDO HMI 2011-10-17 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.80 | 58.69 | 11.60 | 34.36 | -14.89 | 2.55 | -24.88 | 130.21 | 0.5343 | -287.6 | -31.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.45 | 13.95 | 2.56 | 8.02 | -15.37 | 5.05 | -22.38 | 133.82 | 0.5109 | 945.9 | 783.5 | |
| 1.48 | 5.23 | 0.85 | 3.01 | -14.73 | 4.38 | -23.05 | 132.04 | 0.5119 | 966.8 | 756.3 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -16.60 | 3.41 | -24.02 | 133.57 | 0.5406 | 690.0 | 536.8 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -15.38 | 3.33 | -24.10 | 131.74 | 0.5298 | 494.0 | 398.0 | |
| 0.00 | 3.40 | 0.00 | 1.97 | -13.49 | 2.94 | -24.49 | 128.45 | 0.5168 | -716.0 | -545.3 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -16.17 | 2.06 | -25.37 | 131.44 | 0.5511 | -813.0 | -713.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -15.86 | 2.00 | -25.43 | 130.93 | 0.5488 | -858.0 | -712.8 | |
| 1.83 | 4.45 | 1.07 | 2.60 | -14.17 | 1.87 | -25.56 | 128.31 | 0.5352 | -1043.5 | -723.7 | |
| 2.88 | 3.84 | 1.71 | 2.28 | -15.71 | 1.57 | -25.86 | 130.26 | 0.5523 | -971.0 | -917.3 | |
| 1.66 | 2.88 | 0.97 | 1.69 | -14.12 | 1.61 | -25.82 | 127.95 | 0.5378 | -801.5 | -784.6 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -15.63 | 1.34 | -26.09 | 129.89 | 0.5541 | -667.0 | -633.7 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -15.73 | 1.19 | -26.24 | 129.88 | 0.5567 | -595.0 | -436.5 | |
| 0.00 | 1.92 | 0.00 | 1.15 | -15.79 | 0.63 | -26.80 | 129.37 | 0.5635 | 754.0 | 553.0 | |
| 7.50 | 15.87 | 4.44 | 9.41 | -14.42 | 0.67 | -26.76 | 127.42 | 0.5512 | -814.2 | -630.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
