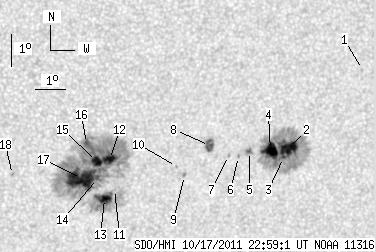

SDO HMI 2011-10-17 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.96 | 534.30 | 60.81 | 300.94 | -12.32 | 48.75 | 21.87 | 230.00 | 0.4759 | -211.2 | -155.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-17 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.56 | -9.56 | 55.50 | 28.62 | 241.99 | 0.5371 | 642.0 | 526.4 | |
| 14.48 | 160.92 | 8.42 | 93.45 | -11.91 | 53.19 | 26.31 | 236.01 | 0.5252 | 1006.2 | 334.3 | |
| 0.78 | -2.00 | 0.46 | -2.00 | -12.19 | 53.05 | 26.17 | 235.42 | 0.5257 | 797.3 | 999999 | |
| 14.74 | -2.00 | 8.52 | -2.00 | -11.95 | 52.58 | 25.70 | 235.33 | 0.5180 | 1139.3 | 999999 | |
| 1.74 | 4.10 | 1.00 | 2.36 | -11.95 | 51.87 | 24.99 | 234.58 | 0.5093 | 923.7 | 873.3 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -12.09 | 51.51 | 24.64 | 233.96 | 0.5061 | 681.0 | 664.0 | |
| 0.00 | 1.57 | 0.00 | 0.90 | -12.04 | 51.17 | 24.30 | 233.66 | 0.5016 | 737.0 | 689.8 | |
| 7.59 | 8.55 | 4.31 | 4.85 | -11.70 | 50.51 | 23.63 | 233.46 | 0.4905 | 889.2 | 672.4 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -12.61 | 49.76 | 22.88 | 231.07 | 0.4898 | 711.0 | 568.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -12.32 | 49.47 | 22.59 | 231.19 | 0.4835 | 426.0 | 367.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -12.96 | 47.48 | 20.60 | 227.54 | 0.4667 | -518.0 | -467.8 | |
| 7.50 | 294.45 | 4.17 | 163.12 | -12.01 | 47.24 | 20.36 | 228.78 | 0.4543 | -1053.3 | -452.5 | |
| 12.47 | 57.56 | 6.97 | 32.23 | -13.24 | 47.18 | 20.30 | 226.68 | 0.4661 | -937.5 | -231.5 | |
| 1.48 | -12.00 | 0.82 | -12.00 | -12.60 | 46.90 | 20.02 | 227.32 | 0.4563 | -682.7 | 999999 | |
| 7.24 | -12.00 | 4.01 | -12.00 | -12.06 | 46.82 | 19.94 | 228.11 | 0.4499 | -1296.9 | 999999 | |
| 2.70 | -12.00 | 1.49 | -12.00 | -11.48 | 46.45 | 19.57 | 228.57 | 0.4397 | -412.2 | 999999 | |
| 37.24 | -12.00 | 20.64 | -12.00 | -12.58 | 46.37 | 19.49 | 226.60 | 0.4502 | -1127.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -12.38 | 44.13 | 17.25 | 223.44 | 0.4231 | -741.0 | -591.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
