SDO HMI 2011-10-17 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.34 | 39.51 | 20.44 | 51.80 | 20.03 | 95.24 | 68.37 | 289.35 | 0.9267 | 31.7 | 97.9 | |
|
previous
or next observation for the same group /

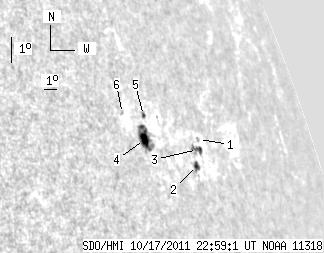

back to the solar disc SDO HMI 2011-10-17 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 3.08 | 19.89 | 98.04 | 71.16 | 289.11 | 0.9434 | -238.0 | -192.0 | |
| 3.75 | 5.23 | 5.31 | 7.39 | 19.15 | 97.18 | 70.30 | 288.34 | 0.9385 | -430.6 | -458.4 | |
| 3.92 | 7.76 | 5.68 | 11.22 | 19.61 | 97.65 | 70.77 | 288.82 | 0.9412 | -460.4 | -365.6 | |
| 6.80 | 20.76 | 8.36 | 25.60 | 20.29 | 93.58 | 66.71 | 289.69 | 0.9167 | 597.6 | 312.5 | |
| 0.87 | 2.27 | 1.09 | 2.85 | 21.01 | 94.14 | 67.26 | 290.44 | 0.9205 | 290.4 | 261.9 | |
| 0.00 | 1.40 | 0.00 | 1.66 | 21.20 | 92.61 | 65.73 | 290.74 | 0.9106 | 538.0 | 475.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
